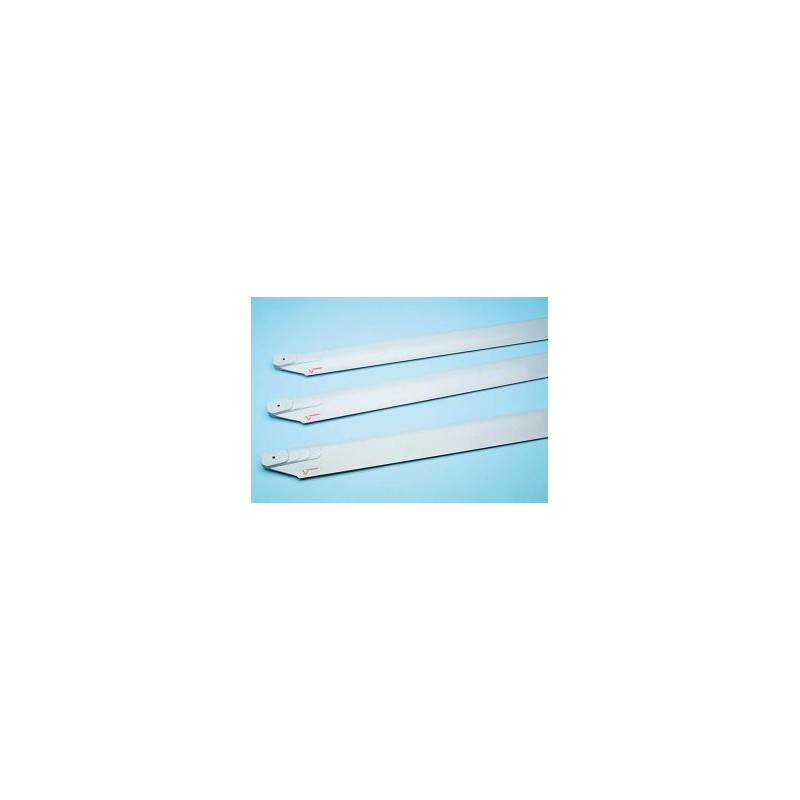

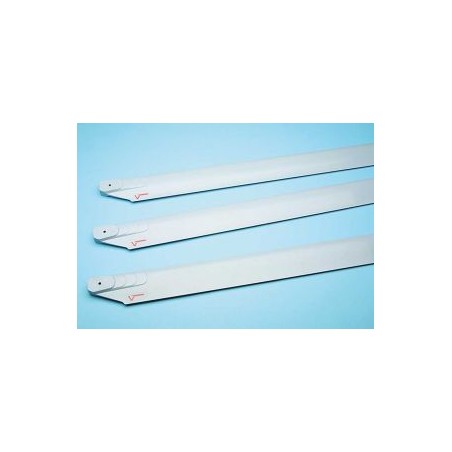

3-lámina-conjunto 2.300 mm L, H

Reference: 403/2

2-blade-set 1500 mm

Specification2-blade-setlength: 660 mmrotor disc: 1500 mmblade root: 14 mm 1-holeblade chord: 65 mmprofile thickness: 9.5 mmweight: ca. 180 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: symmetric l.h.r.

Reference: 413/50

2-blade-set 2360 mm

Specification 2-blade-set length: 1050 mm rotor disc: 2360 mm blade root: 22 mm 1-hole blade chord: 76 mm profile thickness: 6.5 mm weight: ca. 530 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 417/3

3-blade-set 2500 mm

Specification 3-blade-set length: 1090 mm rotor disc: 2500 mm blade root: 22 mm 1-hole blade chord: 75 mm profile thickness: 1 mm weight: ca. 500 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex r.h.r.

Reference: 404/19

3-blade-set 1500 mm

Specification3-blade-setlength: 675 mmrotor disc: 1500 mmblade root: 14 mm 2-holeblade chord: 53 mmprofile thickness: 6.8 mmweight: ca. 165 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex r.h.r.

Reference: 413/4

3-blade-set 2300 mm

Specification 3-blade-set length: 1015 mm rotor disc: 2300 mm blade root: 18 mm 1-hole blade chord: 64 mm profile thickness: 9 mm weight: ca. 480 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex r.h.r.

Reference: 416/50

2-blade-set 2500 mm

Specification 2-blade-set length:1120 mm rotor disc: 2500 mm blade root: 22 mm 1-hole blade chord: 76 mm profile thickness: 6.5 mm weight: ca. 570 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 417/35

3-blade-set 2500 mm Alu

Specification 3-blade-set length: 1120 mm rotor disc: 2500 mm blade root: 22 mm 1-hole blade chord: 76 mm profile thickness: 6.5 mm weight: ca. 550 g material: aluminium black symmetry: reflex r.h.r.

Reference: 427

2-blade-set 1820 mm

Specification 2-blade-set length: 820 mm rotor disc: 1820 mm blade root: 14 mm 1-hole blade chord: 75 mm profile thickness: 11 mm weight: ca. 270 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 404/56

4-blade-set 1930 mm Scale Hughes 500

Specification 4-blade-set length: 870 mm rotor disc: 1930 mm blade root: 14 mm 1-hole drilling: ø 5 mm blade chord: 44 mm profile thickness: 7 mm weight: ca. 200 g material: CFK Shark Skin finish: anthracite matt symmetry: symmetric (l.h.r. or r.h.r. possible)

Reference: 413/3

3-blade-set 2300 mm

Specification 3-blade-set length: 1015 mm rotor disc: 2300 mm blade root: 18 mm 1-hole blade chord: 65 mm profile thickness: 9 mm weight: ca. 480 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 404/40

3-blade-set 1680 mm

Specification3-blade-setlength: 765 mmrotor disc: 1680 mmblade root: 14 mm 2-holeblade chord: 53.0 mmprofile thickness: 6.8 mmweight: ca. 185 gmaterial: CFKShark Skin finish: anthracite mattsymmetry: reflex, l.h.r.

Reference: 410

3-D de las palas del rotor 1380 mm

Reference: 416

2-blade-set 2500 mm

Specification 2-blade-set ength:1120 mm rotor disc: 2500 mm blade root: 22 mm 1-hole blade chord: 75 mm profile thickness: 11 mm weight: ca. 500 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 413/1

2-blade-set 2360 mm

Specification 2-blade-set length: 1050 mm rotor disc: 2360 mm blade root: 22 mm 1-hole blade chord: 75 mm profile thickness: 11 mm weight: ca. 450 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex r.h.r.

Reference: 416/350

3-blade-set 2560 mm

Specification 3-blade-set length: 1120 mm rotor disc: 2560 mm blade root: 22 mm 1-hole blade chord: 76 mm profile thickness: 7.5 mm weight: ca. 570 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 404/28

3-blade-set 1600 mm

Specification 3-blade-set length: 725 mm rotor disc: 1600 mm blade root: 14 mm 2-hole blade chord: 53 mm profile thickness: 6.8 mm weight: ca. 175 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex r.h.r.
