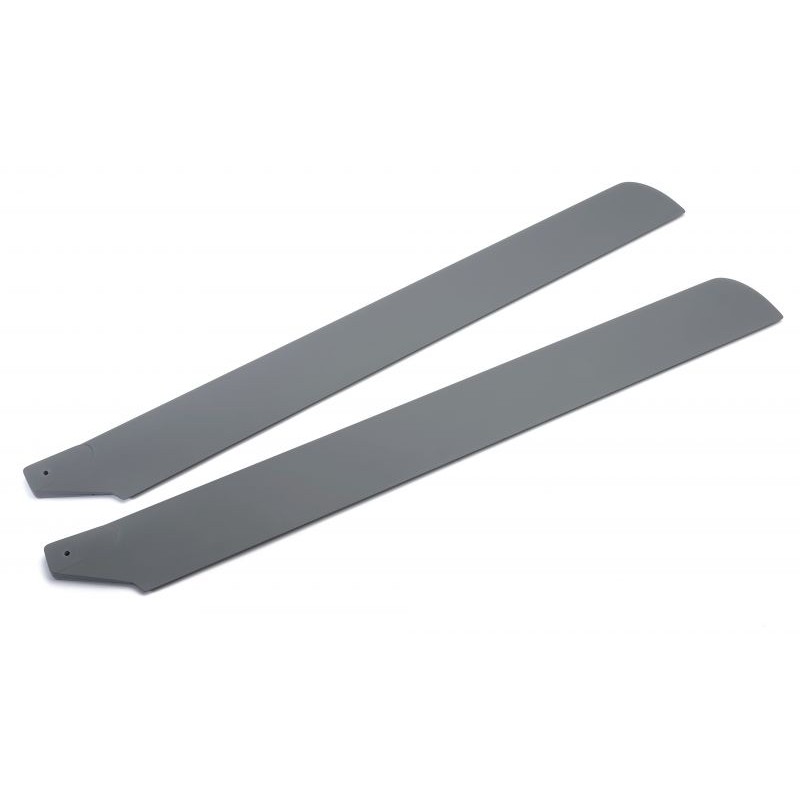

Juego de 2 palas 1350 mm simétrico

Référence: 413/1

2-blade-set 2360 mm

Specification 2-blade-set length: 1050 mm rotor disc: 2360 mm blade root: 22 mm 1-hole blade chord: 75 mm profile thickness: 11 mm weight: ca. 450 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex r.h.r.

Référence: 412/4

Jeu 4-pales 2300 mm

Specification 4-blade-set length: 1015 mm rotor disc: 2300 mm blade root: 18 mm 1-hole blade chord: 65 mm profile thickness: 9 mm weight: ca. 480 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Référence: 417/344

3-Blade-Set 2300 mm Carbon Starwood Lama

Not available

Référence: 416

2-blade-set 2500 mm

Specification 2-blade-set ength:1120 mm rotor disc: 2500 mm blade root: 22 mm 1-hole blade chord: 75 mm profile thickness: 11 mm weight: ca. 500 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Référence: 404/19

Jeu 3-pales 1500 mm

Specification3-blade-setlength: 675 mmrotor disc: 1500 mmblade root: 14 mm 2-holeblade chord: 53 mmprofile thickness: 6.8 mmweight: ca. 165 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex r.h.r.

Référence: 404/63

4-Blatt-Satz 2000 mm

Référence: 419

2-blade-set 1810 mm

Specification 2-blade-set length: 815 mm rotor disc: 1810 mm blade root: 14 mm 1-hole blade chord: 72 mm profile thickness: 9 mm weight: ca. 260 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Référence: 403

2-blade-set 1550 mm

Specification2-blade-setlength: 660 mmrotor disc: 1550 mmblade root: 14 mm 1-holeblade chord: 62 mmprofile thickness: 7.5 mmweight: ca. 175 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex l.h.r.

Référence: 416/3

Jeu 3-pales 2500 mm

Specification 3-blade-set length: 1090 mm rotor disc: 2500 mm blade root: 22 mm 1-hole blade chord: 75 mm profile thickness: 1 mm weight: ca. 500 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Référence: 417/3

Jeu 3-pales 2500 mm

Specification 3-blade-set length: 1090 mm rotor disc: 2500 mm blade root: 22 mm 1-hole blade chord: 75 mm profile thickness: 1 mm weight: ca. 500 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex r.h.r.

Référence: 410/3

Juego de 3 cuchillas 1350 mm 1L simétrico

Référence: 413

2-blade-set 2360 mm

Specification 2-blade-set length: 1050 mm rotor disc: 2360 mm blade root: 22 mm 1-hole blade chord: 75 mm profile thickness: 11 mm weight: ca. 450 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Référence: 417/2

Jeu 3-pales 2300 mm

Specification 3-blade-set length: 990 mm rotor disc: 2300 mm blade root: 22 mm 1-hole blade chord: 75 mm profile thickness: 11 mm weight: ca. 420 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex r.h.r.

Référence: 404/56

Jeu 4-pales 1930 mm Scale Hughes 500

Specification 4-blade-set length: 870 mm rotor disc: 1930 mm blade root: 14 mm 1-hole drilling: ø 5 mm blade chord: 44 mm profile thickness: 7 mm weight: ca. 200 g material: CFK Shark Skin finish: anthracite matt symmetry: symmetric (l.h.r. or r.h.r. possible)

Référence: 418

2-blade-set 1630 mm

Specification 2-blade-set length: 725 mm rotor disc: 1630 mm blade root: 14 mm 1-hole blade chord: 62 mm profile thickness: 8 mm weight: ca. 220 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Référence: 404/55

Jeu 4-pales 1900 mm, métal

Multi-blade system, rotor disc 1900 mm Ø Specification 14.0 mm blade root 855 mm long 65.0 mm blade chord 268 g approx. 6.0 mm profile thickness metal, reflex 5.0 mm Ø bore for blade retaining screw
