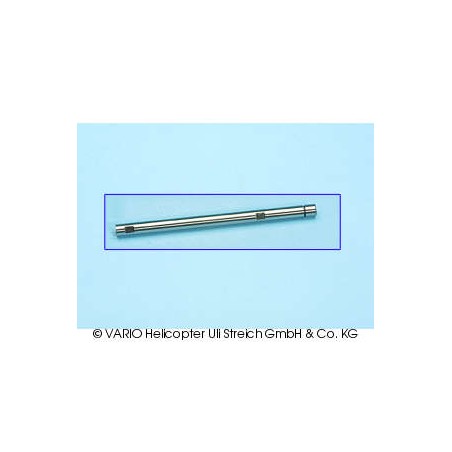

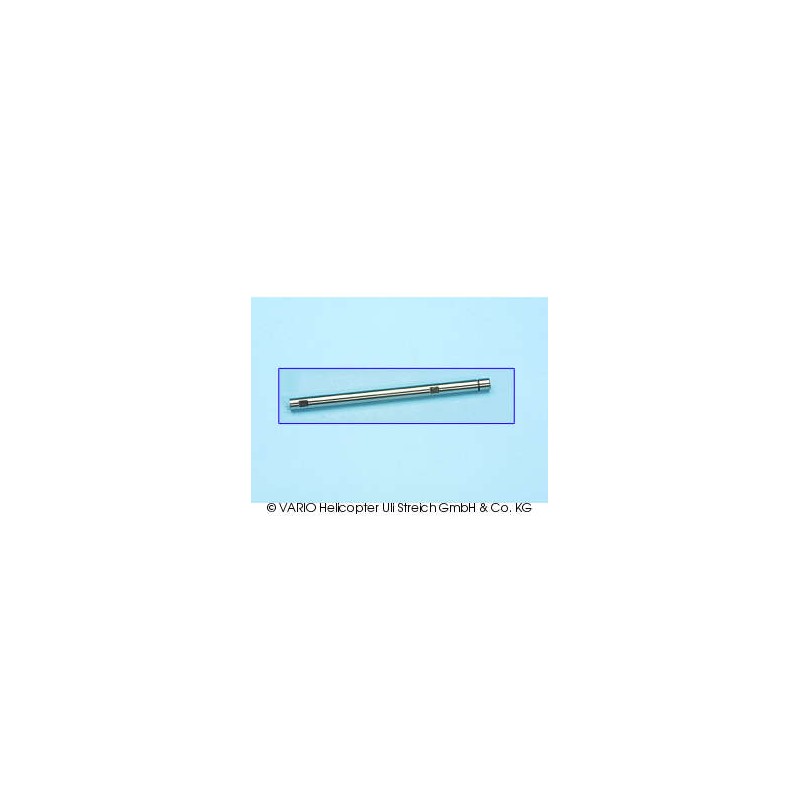

Heckrotorwelle 5 x 82 mm

Riferimento: 92/36

Coperchio per carter coda, alluminio

Aluminium cover for tail rotor housing for aluminium tail rotor with 6 mm shaft.

Riferimento: 92/11

Viti per carter rotore di coda

 Screw set, 12-part1 x socket-head cap screw M 2 x 8 (90015)5 x socket-head cap screw M 2 x 10 (90020)6 x self-locking nut M 2 (90525)

Riferimento: 99/9

Distanziale rotore coda

 Control ringfor tail rotor shaft 5 mm ∅

Riferimento: 97/13

Heckrotorumlenkhebel rechts verstärkt

Riferimento: 95/20

Ingranaggio-Set per alzare i giri

Bevel gear set, speed up gearing for the tail rotor of the Hughes 500, Ord.No. 9040, complete as illustrated.

Riferimento: 97/30

Leva commando rotore coda destra

Bellcrank, right-hand

Riferimento: 97/10

Leva commando rotore coda

Bellcrank, left-hand

Riferimento: 054

Viti a brugola per fissaggio pale coda M3 x 20 G12

Bolt using self-locking nuts don't need additional screw-retaining fluid. Of course this applies to the blade holder bolts on the main rotor head and on the tail rotor (as shown here). Blade holder bolts are counted among the special bolts with high tensile stength, where the shaft and thread length are matched to the application. Pack of 2 with...

Riferimento: 100/22

Comandi snodati

 Ball linkspack of 2shortconnection for ballraces

Riferimento: 103/7

Boccola 5 x 6 x 14 mm

Not available

Riferimento: 92/94

Distanziale

 Content of the package1 piece

Riferimento: 92/37

Coperchio per carter coda, VTR

Housing cover for aluminium tail rotor with 6 mm shaftaluminium

Riferimento: 103/10

Porta pale rotore coda

Tail blade holder for hub with 5 mm.

Riferimento: 7/92

Carter rotore di coda

 Content of the package1 piece

Riferimento: 97/20

Set leva commando rotore coda

Bellcrank set, with flanged bearings, bush and shim washer

Riferimento: 34/5

Calettatore di passo per rotore di coda

The tail rotor blade pitch gauge is the perfect tool for setting pitch angles really accurately; the pitch range should be plus / minus 12°. The gauge can be used to set up any blade with a chord between 21 and 42 mm. It can also be employed for measuring pushrods and similar items up to a length of 110 mm.
