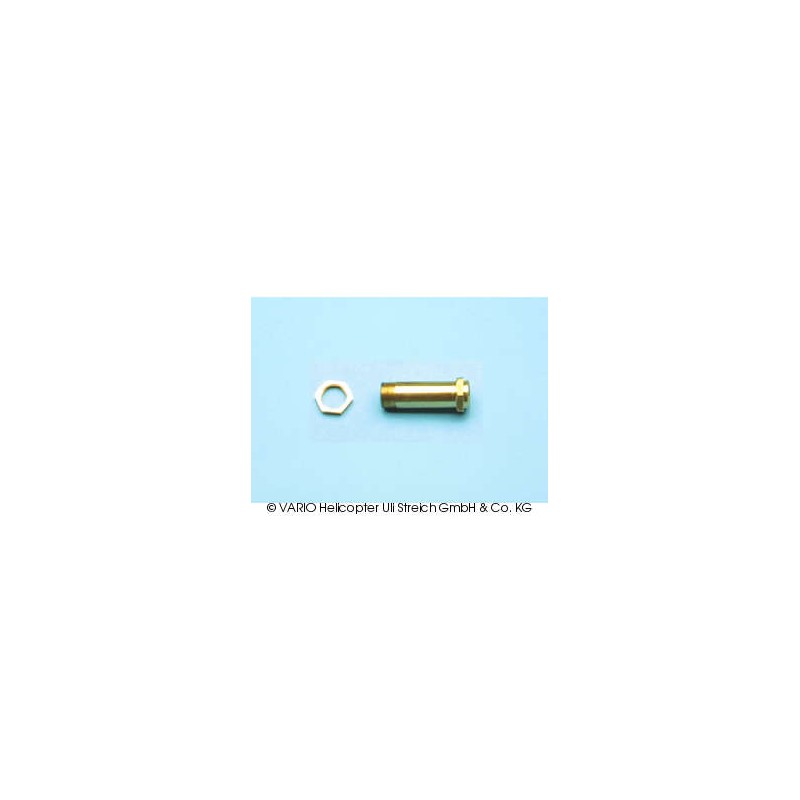

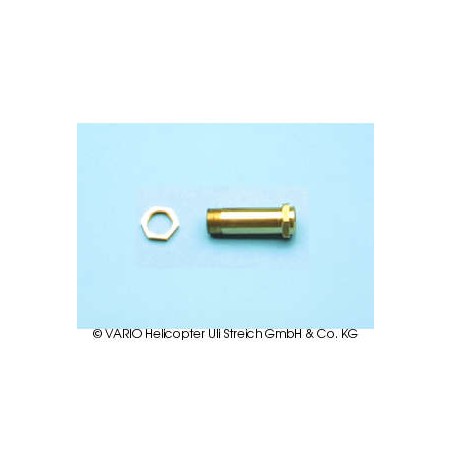

Steuerhülse für Heckrotor

Référence: 97/16

Bellcrank aluminum right

Not available

Référence: 103/10

Porte-pales AC

Tail blade holder for hub with 5 mm.

Référence: 92/11

Kit visserie, 12 pièces

 Screw set, 12-part1 x socket-head cap screw M 2 x 8 (90015)5 x socket-head cap screw M 2 x 10 (90020)6 x self-locking nut M 2 (90525)

Référence: 94/15

Axe AC 5 x 84,5 mm

 Tail rotor shaft5 x 82 mm

Référence: 94 C

Circlips pour Ø 5 mmOrd.No. 94 C

 Circlip for 5 mm ∅ shaftpack of 2

Référence: 103/20

Jeu porte-pales AC

Changing from a 2-blade tail rotor to a 3-blade version is quick and affordable if you use our complete blade holder set. The set includes all the components you need, including blade holder, thrust bearing, ballraces, ball-end bolt, screws etc., without 3-blade hub.

Référence: 97/10

Palonnier AC

Bellcrank, left-hand

Référence: 94/18

Axe AC 6 x 87 mm

 Tail rotor shaft6 x 87 mm

Référence: 98/15

Douille de commande AC

 Control sleevefor tail rotor shaft 5 mm ∅with nut (left-hand thread!)

Référence: 92/87

3-Blatt Heckrotor T-Rex-Lama

Référence: 100/7

Goupille 2 mm pour palonnier

Content of the package: 2 pieces.

Référence: 92/38

Gehäusedeckel lang

Référence: 103/6

Porte-pales AC

 Tail blade holder3-partfor 6 mm ∅ hub

Référence: 92/10

Boîtier AC

The advantage of this 2-part tail rotor housing is that the gearbox can be checked just by removing the rear housing shell. When adjusting the meshing clearance of the bevel gears and similar settings please keep closely to the building instructions; for lubrication use titanium grease; Ord.No. 10/36.The tail rotor is a vital and highly stressed component...

Référence: 34/5

Incidencemètre pour anticouple

The tail rotor blade pitch gauge is the perfect tool for setting pitch angles really accurately; the pitch range should be plus / minus 12°. The gauge can be used to set up any blade with a chord between 21 and 42 mm. It can also be employed for measuring pushrods and similar items up to a length of 110 mm.

Référence: 95/7

Pignon 5 mm, 19 dents

  Bevel gear 5 mm 19 tooth module 0.8
