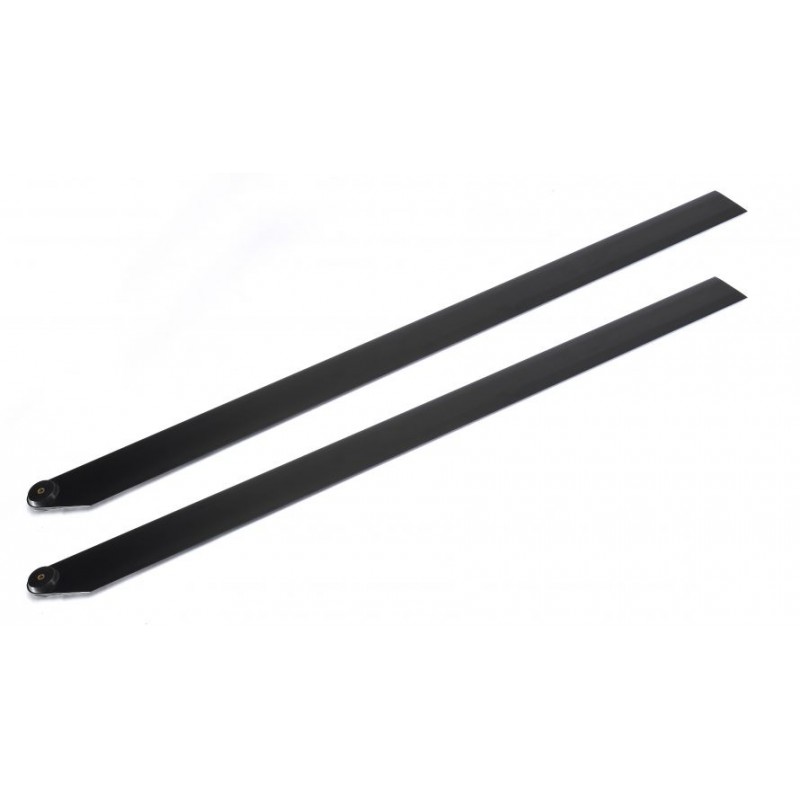

Set de 2 palas 2360mm 22/o6 Alu

Référence: 412/4

Jeu 4-pales 2300 mm

Specification 4-blade-set length: 1015 mm rotor disc: 2300 mm blade root: 18 mm 1-hole blade chord: 65 mm profile thickness: 9 mm weight: ca. 480 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Référence: 404/55

Jeu 4-pales 1900 mm, métal

Multi-blade system, rotor disc 1900 mm Ø Specification 14.0 mm blade root 855 mm long 65.0 mm blade chord 268 g approx. 6.0 mm profile thickness metal, reflex 5.0 mm Ø bore for blade retaining screw

Référence: 404/21

Jeu 4-pales 1500 mm

Specification 4-blade-set length: 675 mm rotor disc: 1500 mm blade root: 14 mm 2-hole blade chord: 53 mm profile thickness: 6.8 mm weight: ca. 165 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Référence: 426

2-blade-set 1680 mm

Specification2-blade-setlength: 750 mmrotor disc:1680 mmblade root: 14 mm 1-holeblade chord: 75 mmprofile thickness: 1 mmweight: ca. 250 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex l.h.r.

Référence: 404/38

Jeu 3-pales 1680 mm

Specification3-blade-setlength: 765 mmrotor disc: 1680 mmblade root: 14 mm 2-holeblade chord: 53.0 mmprofile thickness: 6.8 mmweight: ca. 185 gmaterial: CFKShark Skin finish: anthracite mattsymmetry: reflex, r.h.r.

Référence: 413/4

Jeu 3-pales 2300 mm

Specification 3-blade-set length: 1015 mm rotor disc: 2300 mm blade root: 18 mm 1-hole blade chord: 64 mm profile thickness: 9 mm weight: ca. 480 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex r.h.r.

Référence: 413/1

2-blade-set 2360 mm

Specification 2-blade-set length: 1050 mm rotor disc: 2360 mm blade root: 22 mm 1-hole blade chord: 75 mm profile thickness: 11 mm weight: ca. 450 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex r.h.r.

Référence: 417/5

2-blade-set 2500 mm Alu

Specification 2-blade-set length: 1120 mm rotor disc: 2500 mm blade root: 22 mm 1-hole blade chord: 76 mm profile thickness: 6.5 mm weight: ca. 570 g material: aluminium symmetry: reflex r.h.r.

Référence: 422

2-blade-set 1780 mm

Specification 2-blade-set length: 800 mm rotor disc: 1780 mm blade root: 14 mm 1-hole blade chord: 68 mm profile thickness: 9 mm weight: ca. 250 g material: CFRP Shark Skin finish: anthracite matt symmetry: symmetric l.h.r.

Référence: 413

2-blade-set 2360 mm

Specification 2-blade-set length: 1050 mm rotor disc: 2360 mm blade root: 22 mm 1-hole blade chord: 75 mm profile thickness: 11 mm weight: ca. 450 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Référence: 404/63

4-Blatt-Satz 2000 mm

Référence: 420

2-blade-set 1780 mm

Specification 2-blade-set length: 800 mm rotor disc: 1780 mm blade root: 14 mm 1-hole blade chord: 75 mm profile thickness: 11 mm weight: ca. 250 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex r.h.r.

Référence: 417/350

Jeu 3-pales 2560 mm

Specification 3-blade-set length: 1120 mm rotor disc: 2560 mm blade root: 22 mm 1-hole blade chord: 76 mm profile thickness: 7.5 mm weight: ca. 570 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex r.h.r.

Référence: 417/2

Jeu 3-pales 2300 mm

Specification 3-blade-set length: 990 mm rotor disc: 2300 mm blade root: 22 mm 1-hole blade chord: 75 mm profile thickness: 11 mm weight: ca. 420 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex r.h.r.

Référence: 404/900

Jeu 5-pales 1550 mm

Specification 5-blade-set length: 680 mm rotor disc: 1550 mm blade root: 14 mm 1-hole blade chord: 47 mm profile thickness: 7 mm weight: ca. 150 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Référence: 416/350

Jeu 3-pales 2560 mm

Specification 3-blade-set length: 1120 mm rotor disc: 2560 mm blade root: 22 mm 1-hole blade chord: 76 mm profile thickness: 7.5 mm weight: ca. 570 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.
