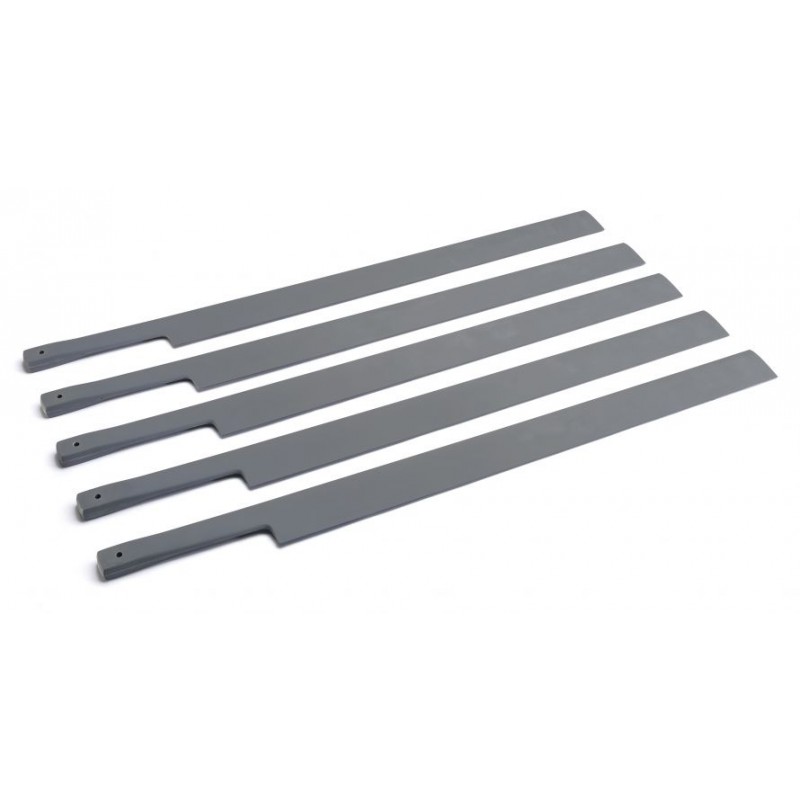

Set 5 palas1550mm para MD 900

Reference: F428

Reflex blades 2000 mm

Rotor blade, rotor disc 2000 mm Ø Specification 14.0 mm blade root 910 mm long 75.0 mm blade chord 290 g approx. 11.0 mm profile thickness GRP, reflex 1 pair

Reference: 404/18

4-blade-set 1600 mm

Specification4-blade-setlength: 725 mmrotor disc: 1600 mmblade root: 14 mm 2-holeblade chord: 53 mmprofile thickness: 6.8 mmweight: ca. 175 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex r.h.r.

Reference: 418

2-blade-set 1630 mm

Specification 2-blade-set length: 725 mm rotor disc: 1630 mm blade root: 14 mm 1-hole blade chord: 62 mm profile thickness: 8 mm weight: ca. 220 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 417/5

2-blade-set 2500 mm Alu

Specification 2-blade-set length: 1120 mm rotor disc: 2500 mm blade root: 22 mm 1-hole blade chord: 76 mm profile thickness: 6.5 mm weight: ca. 570 g material: aluminium symmetry: reflex r.h.r.

Reference: 413/50

2-blade-set 2360 mm

Specification 2-blade-set length: 1050 mm rotor disc: 2360 mm blade root: 22 mm 1-hole blade chord: 76 mm profile thickness: 6.5 mm weight: ca. 530 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 417/350

3-blade-set 2560 mm

Specification 3-blade-set length: 1120 mm rotor disc: 2560 mm blade root: 22 mm 1-hole blade chord: 76 mm profile thickness: 7.5 mm weight: ca. 570 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex r.h.r.

Reference: 410/3

Juego de 3 cuchillas 1350 mm 1L simétrico

Reference: 420

2-blade-set 1780 mm

Specification 2-blade-set length: 800 mm rotor disc: 1780 mm blade root: 14 mm 1-hole blade chord: 75 mm profile thickness: 11 mm weight: ca. 250 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex r.h.r.

Reference: 421

2-blade-set 1780 mm

Specification 2-blade-set length: 800 mm rotor disc: 1780 mm blade root: 14 mm 1-hole blade chord: 75 mm profile thickness: 11 mm weight: ca. 250 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 415

2-blade-set 2160 mm

Specification 2-blade-set length: 950 mm rotor disc: 2160 mm blade root: 22 mm 1-hole blade chord: 75 mm profile thickness: 11 mm weight: ca. 400 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 416/350

3-blade-set 2560 mm

Specification 3-blade-set length: 1120 mm rotor disc: 2560 mm blade root: 22 mm 1-hole blade chord: 76 mm profile thickness: 7.5 mm weight: ca. 570 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 414/4

4-blade-set 2100 mm

Specification 4-blade-set length: 915 mm rotor disc: 2100 mm blade root: 18 mm 1-hole blade chord: 65 mm profile thickness: 9 mm weight: ca. 420 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 403/33

2-blade-set 1500 mm

Specification2-blade-setlength: 660 mmrotor disc: 1500 mmblade root: 14 mm 1-holeblade chord: 65 mmprofile thickness: 9.5 mmweight: ca. 195 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: symmetric l.h.r.

Reference: 404/56

4-blade-set 1930 mm Scale Hughes 500

Specification 4-blade-set length: 870 mm rotor disc: 1930 mm blade root: 14 mm 1-hole drilling: ø 5 mm blade chord: 44 mm profile thickness: 7 mm weight: ca. 200 g material: CFK Shark Skin finish: anthracite matt symmetry: symmetric (l.h.r. or r.h.r. possible)

Reference: 404/42

5-blade-set 1680 mm

Specification5-blade-setlength: 765 mmrotor disc: 1680 mmblade root: 14 mm 2-holeblade chord: 53 mmprofile thickness: 6.8 mmweight: ca. 185 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex l.h.r.

Reference: 404/20

3-blade-set 1500 mm

Specification3-blade-setlength: 675 mmrotor disc: 1500 mmblade root: 14 mm 2-holeblade chord: 53 mmprofile thickness: 6.8 mmweight: ca. 165 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex l.h.r.
