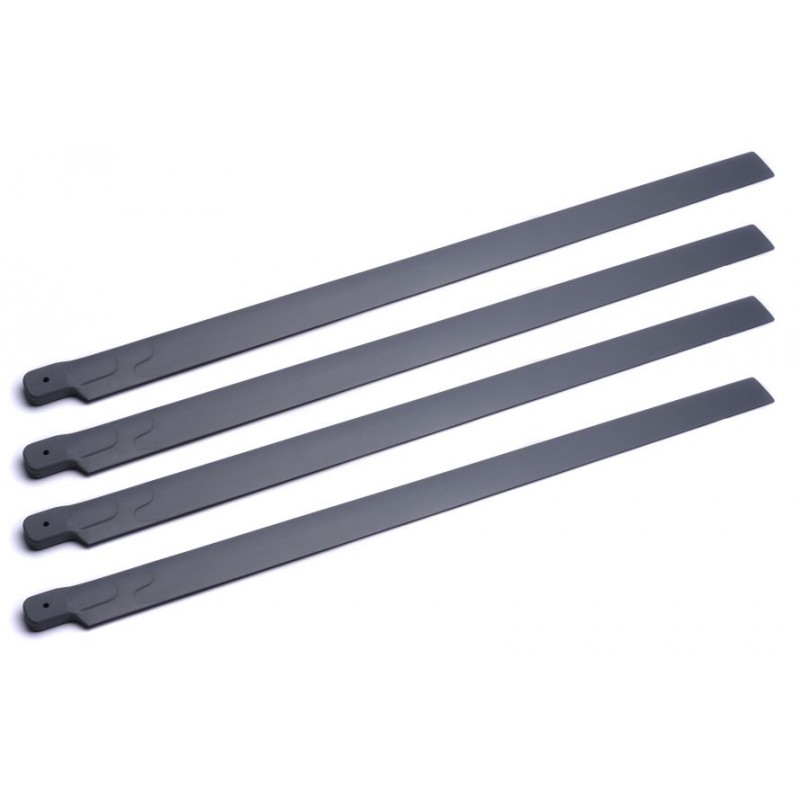

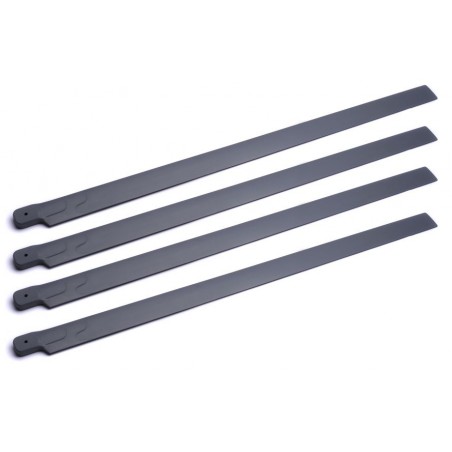

4-blade-set 1930 mm Scale Hughes 500

Reference: 404/51

4-blade-set 1880 mm

Specification 4-blade-set length: 865 mm rotor disc: 1880 mm blade root: 14 mm 2-hole blade chord: 53 mm profile thickness: 6.8 mm weight: ca. 200 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 417/35

3-blade-set 2500 mm Alu

Specification 3-blade-set length: 1120 mm rotor disc: 2500 mm blade root: 22 mm 1-hole blade chord: 76 mm profile thickness: 6.5 mm weight: ca. 550 g material: aluminium black symmetry: reflex r.h.r.

Reference: 412/4

4-blade-set 2300 mm

Specification 4-blade-set length: 1015 mm rotor disc: 2300 mm blade root: 18 mm 1-hole blade chord: 65 mm profile thickness: 9 mm weight: ca. 480 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 404/63

4-Blatt-Satz 2000 mm

Reference: 424

2-blade-set 1930 mm

Specification 2-blade-set length: 875 mm rotor disc: 1930 mm blade root: 14 mm 1-hole blade chord: 75 mm profile thickness: 11 mm weight: ca. 280 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 404/66

Juego de 4 cuchillas 2000 mm

Reference: 416/35

3-blade-set 2500 mm Alu

Specification 3-blade-set length: 1120 mm rotor disc: 2500 mm blade root: 22 mm 1-hole blade chord: 76 mm profile thickness: 6.5 mm weight: ca. 570 g material: aluminium symmetry: reflex l.h.r.

Reference: F428

Reflex blades 2000 mm

Rotor blade, rotor disc 2000 mm Ø Specification 14.0 mm blade root 910 mm long 75.0 mm blade chord 290 g approx. 11.0 mm profile thickness GRP, reflex 1 pair

Reference: 404/18

4-blade-set 1600 mm

Specification4-blade-setlength: 725 mmrotor disc: 1600 mmblade root: 14 mm 2-holeblade chord: 53 mmprofile thickness: 6.8 mmweight: ca. 175 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex r.h.r.

Reference: 404/57

5-blade-set 1930 mm Scale Hughes 500

Specification 5-blade-set length: 870 mm rotor disc: 1930 mm blade root: 14 mm 1-hole drilling: ø 5 mm blade chord: 44 mm profile thickness: 7 mm weight: ca. 200 g material: CFK Shark Skin finish: anthracite matt symmetry: symmetric (l.h.r. or r.h.r. possible)

Reference: 404/30

3-blade-set 1600 mm

Specification 3-blade-set length: 725 mm rotor disc: 1600 mm blade root: 14 mm 2-hole blade chord: 53 mm profile thickness: 6.8 mm weight: ca. 175 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 427

2-blade-set 1820 mm

Specification 2-blade-set length: 820 mm rotor disc: 1820 mm blade root: 14 mm 1-hole blade chord: 75 mm profile thickness: 11 mm weight: ca. 270 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 404/19

3-blade-set 1500 mm

Specification3-blade-setlength: 675 mmrotor disc: 1500 mmblade root: 14 mm 2-holeblade chord: 53 mmprofile thickness: 6.8 mmweight: ca. 165 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex r.h.r.

Reference: 417/5

2-blade-set 2500 mm Alu

Specification 2-blade-set length: 1120 mm rotor disc: 2500 mm blade root: 22 mm 1-hole blade chord: 76 mm profile thickness: 6.5 mm weight: ca. 570 g material: aluminium symmetry: reflex r.h.r.

Reference: 404/900

5-blade-set 1550 mm

Specification 5-blade-set length: 680 mm rotor disc: 1550 mm blade root: 14 mm 1-hole blade chord: 47 mm profile thickness: 7 mm weight: ca. 150 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 404/60

6-blade-set 2000 mm

Specification 6-blade-set length: 890 mm rotor disc: 2000 mm blade root: 14 mm 1-hole blade chord: 47 mm profile thickness: 7 mm weight: ca. 250 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.
