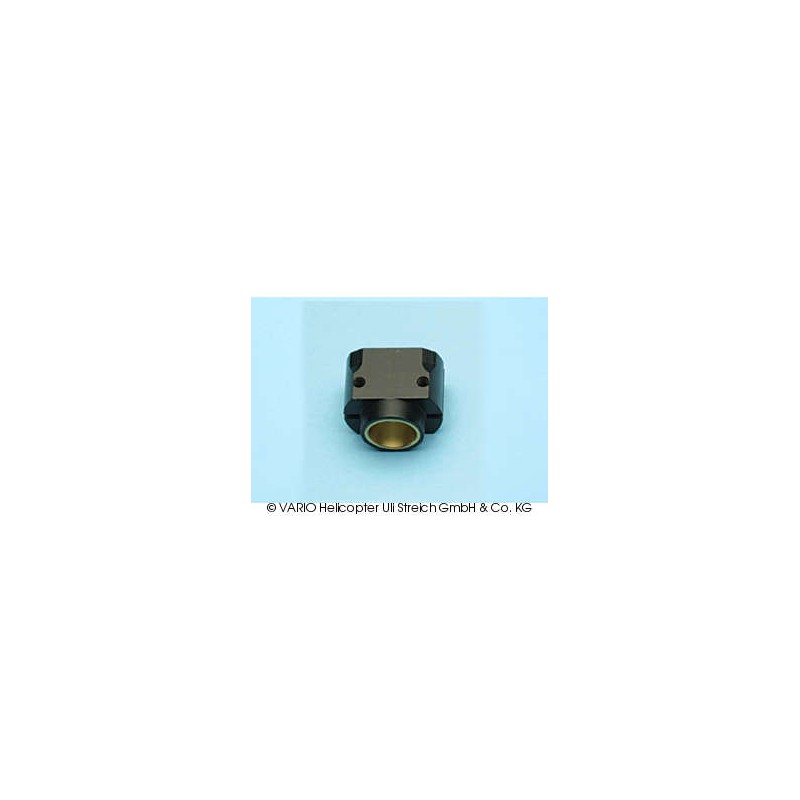

Mittelteil Alu, 12 mm

Référence: 770/36

Spacer for rotor cap BK117

Not available

Référence: 702/95

Spring for rotor head Bell 47

 Content of the package2 pieces

Référence: 82/51

Bellcrank

Not available

Référence: 707/3

Rotor head cover for 3-blade head

155 mm diameter

Référence: 54/13

Clamp ring pitch compensator 10 mm

On longer rotor shafts the clamp ring for the pitch compensator sits underneath of the centre piece directly on the rotor shaft.Clamp ring for pitch compensator 10 mm Ø, length of the pin 30 mm.

Référence: 74/19

Joint torique, souple 1.5 x 19 mm

O-ring 1.5 x 19 mm soft Content of the package: 8 pieces Tip: O-rings always slide with a drop of silicone oil onto the shaft.

Référence: 76/15

Porte-pales GFK

Blade holder, GRP, reinforced

Référence: 74/5

Joint torique, souple 3 x 7 mm

O-ring 3 x 7 mm soft Content of the package: 4 pieces Tip: O-rings always slide with a drop of silicone oil onto the shaft.

Référence: 71/55

Collective pitch compensator 12 mm

Pitch compensator, complete, for 12 mm Ø main shaft, centre piece aluminium

Référence: 72/5

Rotor brake, GRP

When you have landed and stopped the engine, the rotor head continues spinning for quite some time until it stops by itself. A rotor brake shortens the time you have to wait. Using light pressure with the flat of your hand on the domed face of the rotor brake you can stop the rotor in a few moments.Please note: stay in safe distance away from the turning...

Référence: 703/41

La palanca acodada, Alu

Référence: 703/45

Rotor head linkage for Alouette III

This rotor head linkage is essential for the correct operation of the rotor head of the Alouette III due to its heavy take-off weight.

Référence: 91/65

Paddles 3-D

 Paddles1 pairapprox. 19 g eachfor 4 mm Ø flybar

Référence: 73/10

Axe porte-pales 8 x 110 mm

 Thrust bearing shaft8 Ø x 110 mm

Référence: 72/40

Rotor head centre piece

Aluminium centre piece for 10 mm main shaft

Référence: 54/18

Clamp ring for 12 mm

Same design as clamp ring 54/13, but for 12 mm Ø main rotor shaft.Clamp ring for pitch compensator 12 mm Ø, length of the pin 40 mm.
