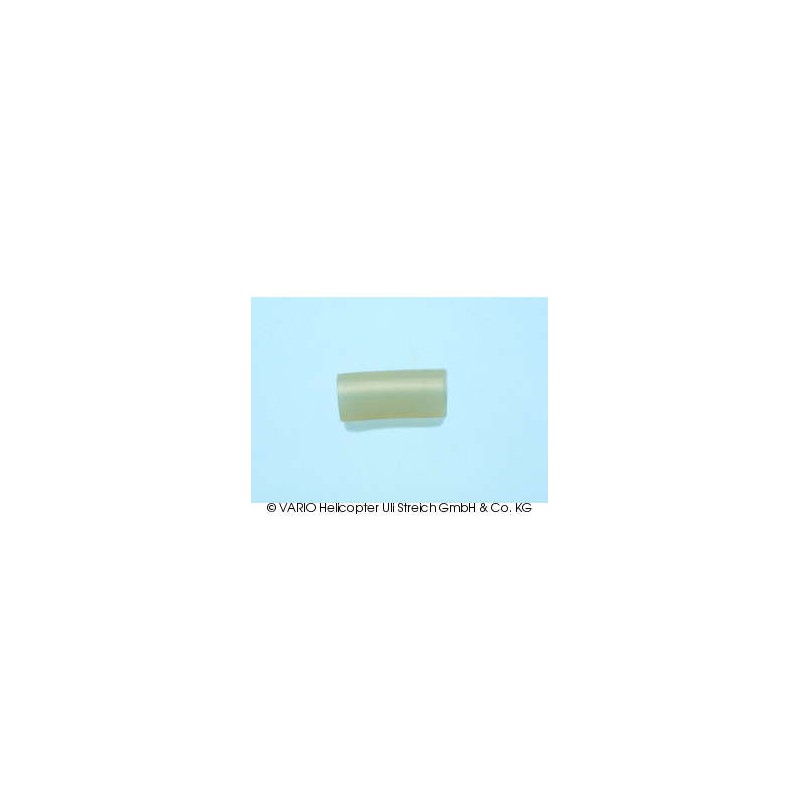

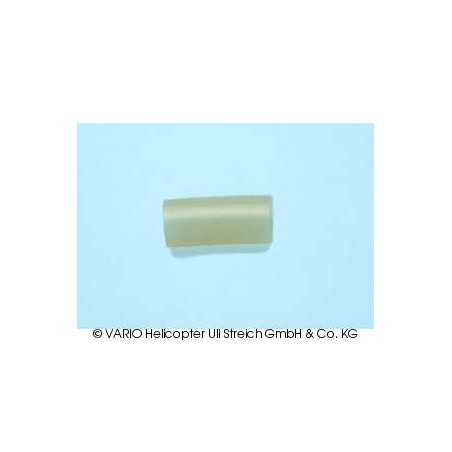

Siliconschlauch 8 x 2 x 100 mm

Reference: 76/19

GRP blade holder, 5 mm ∅ hole

As demands on helicopters continue to rise, so stronger blade holders are required. In this case a 14 mm blade holder is combined with a 5 mm Ø hole for blade retention, i.e. the matching blade holder screws and self-locking nuts are M5 in size.GRP blade holder with short linkage armfor multi-blade rotor heads

Reference: 71/4

Pitch mixer centre piece 10 mm

Pitch mixer centre piece, aluminium, 10 mm ∅

Reference: 82/51

Bellcrank

Not available

Reference: 72/4

Rotor brake, GRP

When you have landed and stopped the engine, the rotor head continues spinning for quite some time until it stops by itself. A rotor brake shortens the time you have to wait. Using light pressure with the flat of your hand on the domed face of the rotor brake you can stop the rotor in a few moments.Please note: stay in safe distance away from the turning...

Reference: 82/9

Aluminium rocker

When you use a speed regulator you put the magnets into the cut-outs of this clamp ring. Clamp ring for speed collection, 10 mm Ø.

Reference: 87/20

Actuating lever

The connection between mixer lever and variable rocker is carried out by an actuating lever, triple ballraced. Content of the package: 2 pieces

Reference: 87/15

Double ball-link for rotor head

 Double ball-linkpack of 2

Reference: 72/22

Rotor head centre piece, rigid

Aluminium centre piece, rigid, for 12 mm main shaft

Reference: 86/10

Ball collet 5 mm

Ball collets provide the fixation of double ball-links on the flybar, in order to settle the essential distance to the rocker.Ball collet 5 mm Ø, pack of 2, chrome-plated.

Reference: 80/10

Control bridge with metal balls

The control bridge actuates the flybar. The servos pass the control commands to the swashplate. The collective pitch compensator connected to the swashplate transfers the movement to the control bridge via the angled pushrods. The flybar accepts the control commands and passes them on to the blade holders and the rotor disc.Control bridge, GRP, for 4 mm ∅...

Reference: 80/20

Control bridge 2-part metal, 4 mm

Control bridge 2-part metal, for 4 mm Ø flybar.

Reference: 85/1

Spacer 4 x 6 x 1.5 mm

Spacer 4 x 6 x 1.5 mm, brass Content of the package: 2 pieces

Reference: 74/14

O-ring 3 x 16 mm soft

O-ring 3 x 16 mm soft Content of the package: 8 pieces Tip: O-rings always slide with a drop of silicone oil onto the shaft.

Reference: 1005/8

Kit de conversión varillaje directo para JetRanger XL eléctrico

Reference: 54/13

Clamp ring pitch compensator 10 mm

On longer rotor shafts the clamp ring for the pitch compensator sits underneath of the centre piece directly on the rotor shaft.Clamp ring for pitch compensator 10 mm Ø, length of the pin 30 mm.

Reference: 76/18

Blade holder twin blade bolt

Component part for a multi-blade rotor head for 10 mm or 12 mm Ø main shaft.
