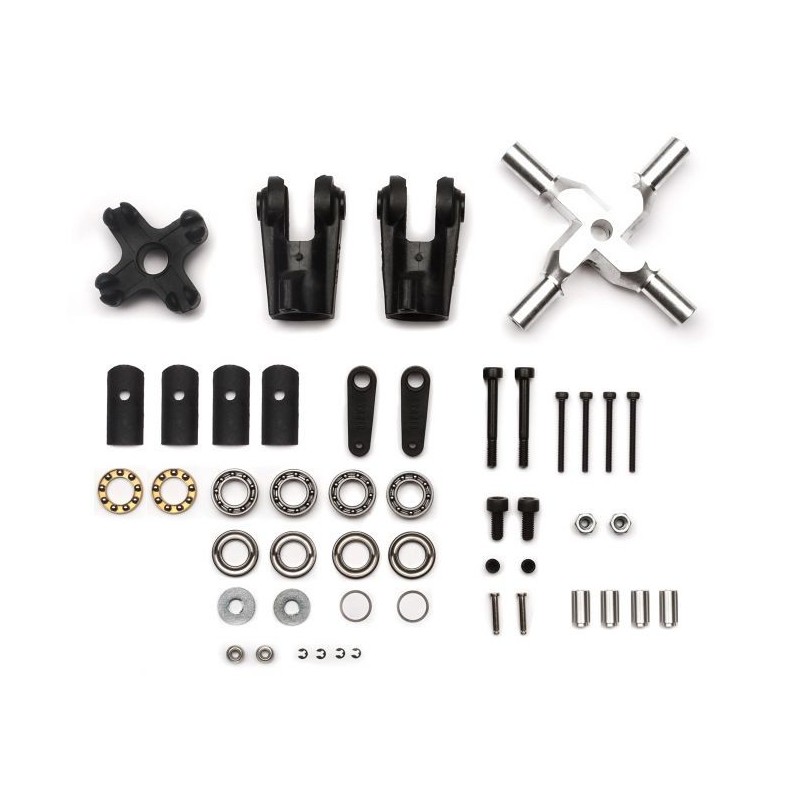

Kit de conversion 4 palas para eje de 6 mm

Reference: 97/15

Bellcrank aluminum left

Not available

Reference: 95/20

Bevel gear set, speed up gearing

Bevel gear set, speed up gearing for the tail rotor of the Hughes 500, Ord.No. 9040, complete as illustrated.

Reference: 054

Blade holder bolts M 3 x 20 mm G12 for tail rotor

Bolt using self-locking nuts don't need additional screw-retaining fluid. Of course this applies to the blade holder bolts on the main rotor head and on the tail rotor (as shown here). Blade holder bolts are counted among the special bolts with high tensile stength, where the shaft and thread length are matched to the application. Pack of 2 with...

Reference: 95/7

Bevel gear 5mm, 19 tooth

  Bevel gear 5 mm 19 tooth module 0.8

Reference: 92/87

3-Blatt Heckrotor T-Rex-Lama

Reference: 97/30

Bellcrank, right-hand

Bellcrank, right-hand

Reference: 92/10

Tail rotor housing 2-part

The advantage of this 2-part tail rotor housing is that the gearbox can be checked just by removing the rear housing shell. When adjusting the meshing clearance of the bevel gears and similar settings please keep closely to the building instructions; for lubrication use titanium grease; Ord.No. 10/36.The tail rotor is a vital and highly stressed component...

Reference: 95/5

Bevel gear 5 mm, 18-tooth

 Bevel gear5 mm18 toothmodule 0.8

Reference: 97/5

Return spring, chromed

The linkage of the tail rotor is affected by the face clearance of servo gears, by the bellcrank and by the pushrod. Minimal play can arise from the face clearance of the servo gears as well as from the necessary freedom of movement for the ball at the bellcrank.With the screw fitting pushrod connector the pushrod still is adjusted without play. The face...

Reference: 97/10

Bellcrank

Bellcrank, left-hand

Reference: 94/18

Tail rotor shaft 6 x 87 mm

 Tail rotor shaft6 x 87 mm

Reference: 94/19

Heckrotorwelle 6 x 112 mm

Reference: 92/36

Tail gearbox bearing holder

Aluminium cover for tail rotor housing for aluminium tail rotor with 6 mm shaft.

Reference: 92/38

Gehäusedeckel lang

Reference: 94/10

Tail rotor shaft 5 x 82 mm

 Tail rotor shaft5 x 82 mm

Reference: 7/92

Tail rotor housing

 Content of the package1 piece
