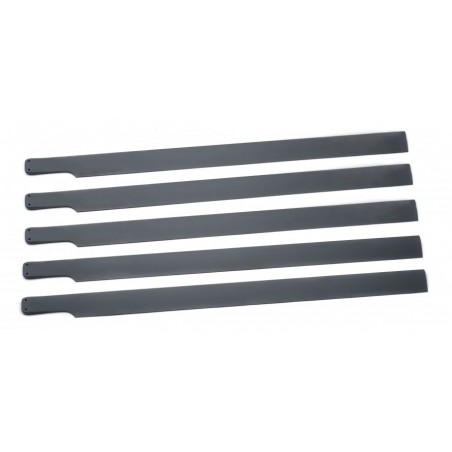

Set 5 palas1680 mm

Reference: 413/2

3-blade-set 2200 mm

Specification 3-blade-set length: 965 mm rotor disc: 2200 mm blade root: 18 mm 1-hole blade chord: 65 mm profile thickness: 9 mm weight: ca. 450 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 415/5

2-blade-set 2160 mm Alu

Specification 2-blade-set length: 950 mm rotor disc: 2160 mm blade root: 22 mm 1-hole blade chord: 76 mm profile thickness: 6.5 mm weight: ca. 480 g material: alumninium symmetry: reflex l.h.r.

Reference: 404/22

5-blade-set 1500 mm

Specification5-blade-setlength: 675 mmrotor disc: 1500 mmblade root: 14 mm 2-holeblade chord: 53 mmprofile thickness: 6.8 mmweight: ca. 165 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex l.h.r.

Reference: 415/1

2-blade-set 2160 mm

Specification 2-blade-set length: 950 mm rotor disc: 2160 mm blade root: 22 mm 1-hole blade chord: 75 mm profile thickness: 11 mm weight: ca. 400 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex r.h.r.

Reference: 414/4

4-blade-set 2100 mm

Specification 4-blade-set length: 915 mm rotor disc: 2100 mm blade root: 18 mm 1-hole blade chord: 65 mm profile thickness: 9 mm weight: ca. 420 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 404/55

4-blade-set 1900 mm, metal

Multi-blade system, rotor disc 1900 mm Ø Specification 14.0 mm blade root 855 mm long 65.0 mm blade chord 268 g approx. 6.0 mm profile thickness metal, reflex 5.0 mm Ø bore for blade retaining screw

Reference: 404/31

4-blade-set 1600 mm

Specification4-blade-setlength: 725 mmrotor disc: 1600 mmblade root: 14 mm 2-holeblade chord: 53 mmprofile thickness: 6.8 mmweight: ca. 175 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex l.h.r.

Reference: 410

3-D de las palas del rotor 1380 mm

Reference: F428

Reflex blades 2000 mm

Rotor blade, rotor disc 2000 mm Ø Specification 14.0 mm blade root 910 mm long 75.0 mm blade chord 290 g approx. 11.0 mm profile thickness GRP, reflex 1 pair

Reference: 431

2-blade-set 1630 mm

Specification 2-blade-set length: 725 mm rotor disc: 1630 mm blade root: 14 mm 1-hole blade chord: 69 mm profile thickness: 8 mm weight: ca. 210 g material: CFRP Shark Skin finish: anthracite matt symmetry: symmetric l.h.r.

Reference: 427

2-blade-set 1820 mm

Specification 2-blade-set length: 820 mm rotor disc: 1820 mm blade root: 14 mm 1-hole blade chord: 75 mm profile thickness: 11 mm weight: ca. 270 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 404/19

3-blade-set 1500 mm

Specification3-blade-setlength: 675 mmrotor disc: 1500 mmblade root: 14 mm 2-holeblade chord: 53 mmprofile thickness: 6.8 mmweight: ca. 165 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex r.h.r.

Reference: 426

2-blade-set 1680 mm

Specification2-blade-setlength: 750 mmrotor disc:1680 mmblade root: 14 mm 1-holeblade chord: 75 mmprofile thickness: 1 mmweight: ca. 250 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex l.h.r.

Reference: 417/350

3-blade-set 2560 mm

Specification 3-blade-set length: 1120 mm rotor disc: 2560 mm blade root: 22 mm 1-hole blade chord: 76 mm profile thickness: 7.5 mm weight: ca. 570 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex r.h.r.

Reference: 404/57

5-blade-set 1930 mm Scale Hughes 500

Specification 5-blade-set length: 870 mm rotor disc: 1930 mm blade root: 14 mm 1-hole drilling: ø 5 mm blade chord: 44 mm profile thickness: 7 mm weight: ca. 200 g material: CFK Shark Skin finish: anthracite matt symmetry: symmetric (l.h.r. or r.h.r. possible)

Reference: 404/52

5-blade-set 1880 mm

Specification 5-blade-set length: 865 mm rotor disc: 1880 mm blade root: 14 mm 2-hole blade chord: 53 mm profile thickness: 6.8 mm weight: ca. 200 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.
