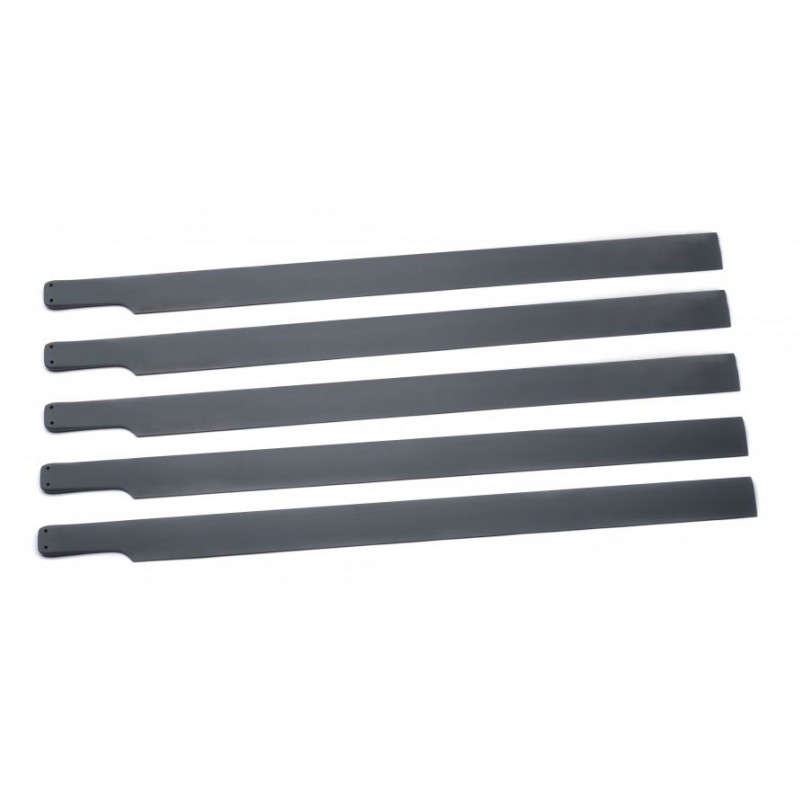

5-blade-set 1680 mm

Riferimento: 403/2

2-blade-set 1500 mm

Specification2-blade-setlength: 660 mmrotor disc: 1500 mmblade root: 14 mm 1-holeblade chord: 65 mmprofile thickness: 9.5 mmweight: ca. 180 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: symmetric l.h.r.

Riferimento: 404/19

Set 3 pale 1500 mm

Specification3-blade-setlength: 675 mmrotor disc: 1500 mmblade root: 14 mm 2-holeblade chord: 53 mmprofile thickness: 6.8 mmweight: ca. 165 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex r.h.r.

Riferimento: 421

2-blade-set 1780 mm

Specification 2-blade-set length: 800 mm rotor disc: 1780 mm blade root: 14 mm 1-hole blade chord: 75 mm profile thickness: 11 mm weight: ca. 250 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Riferimento: 426

2-blade-set 1680 mm

Specification2-blade-setlength: 750 mmrotor disc:1680 mmblade root: 14 mm 1-holeblade chord: 75 mmprofile thickness: 1 mmweight: ca. 250 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex l.h.r.

Riferimento: 410

3-D de las palas del rotor 1380 mm

Riferimento: 404/51

Set 4 pale 1880 mm

Specification 4-blade-set length: 865 mm rotor disc: 1880 mm blade root: 14 mm 2-hole blade chord: 53 mm profile thickness: 6.8 mm weight: ca. 200 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Riferimento: F428

Reflex blades 2000 mm

Rotor blade, rotor disc 2000 mm Ø Specification 14.0 mm blade root 910 mm long 75.0 mm blade chord 290 g approx. 11.0 mm profile thickness GRP, reflex 1 pair

Riferimento: 415/50

2-blade-set 2160 mm

Specification 2-blade-set length: 950 mm rotor disc: 2160 mm blade root: 22 mm 1-hole blade chord: 76 mm profile thickness: 6.5 mm weight: ca. 480 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Riferimento: F413/3

Set tre pale 2300mm grigie, sinistre, per Gazelle

3-Blade-Set 2300mm, gray, LH. For Gazelle

Riferimento: 404/21

Set 4 pale 1500 mm

Specification 4-blade-set length: 675 mm rotor disc: 1500 mm blade root: 14 mm 2-hole blade chord: 53 mm profile thickness: 6.8 mm weight: ca. 165 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Riferimento: 413

2-blade-set 2360 mm

Specification 2-blade-set length: 1050 mm rotor disc: 2360 mm blade root: 22 mm 1-hole blade chord: 75 mm profile thickness: 11 mm weight: ca. 450 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Riferimento: 416/35

Set 3 pale 2500 mm alluminio

Specification 3-blade-set length: 1120 mm rotor disc: 2500 mm blade root: 22 mm 1-hole blade chord: 76 mm profile thickness: 6.5 mm weight: ca. 570 g material: aluminium symmetry: reflex l.h.r.

Riferimento: 419

2-blade-set 1810 mm

Specification 2-blade-set length: 815 mm rotor disc: 1810 mm blade root: 14 mm 1-hole blade chord: 72 mm profile thickness: 9 mm weight: ca. 260 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Riferimento: 404/60

Set 6 pale 2000 mm

Specification 6-blade-set length: 890 mm rotor disc: 2000 mm blade root: 14 mm 1-hole blade chord: 47 mm profile thickness: 7 mm weight: ca. 250 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Riferimento: 414/4

Set 4 pale 2100 mm

Specification 4-blade-set length: 915 mm rotor disc: 2100 mm blade root: 18 mm 1-hole blade chord: 65 mm profile thickness: 9 mm weight: ca. 420 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Riferimento: 404/28

Set 3 pale 1600 mm

Specification 3-blade-set length: 725 mm rotor disc: 1600 mm blade root: 14 mm 2-hole blade chord: 53 mm profile thickness: 6.8 mm weight: ca. 175 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex r.h.r.
