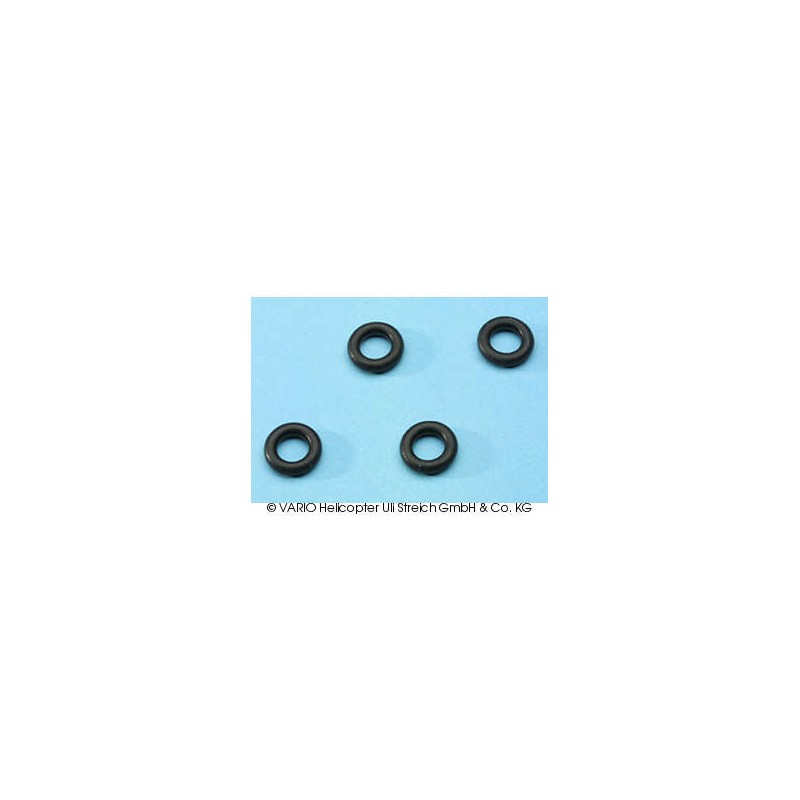

Torica de 3 x 7 mm Blanda

Référence: 702/90

Aluminium centre piece

Aluminium centre piece for 12 mm Ø main shaft

Référence: 707/2

Rotor head cover for 4-blade head

Rotor head cover for 4-blade head incl. screw.Laminated of carbonapprox. 120 mm ∅, 25 mm high

Référence: 87/4

Chape double 90°

A 90° twisted double ball-link connect the mixer lever to the ball collet on the flybar. Content of the package: 2 pieces

Référence: 117/3

Spacer washer 10 x 24.6 mm

Spacer washer for rotor headPack of 2

Référence: 832/73

Blade pivot shaft 10 x 187 mm

Blade pivot shaft 10 x 187 mm for rotor head 722/72

Référence: 707/5

Rotor head cover for 5-blade head

The multi-blade rotor heads of full-size helicopters are generally fitted with protective covers; this applies to the Ecureuil, the Dauphin, the Eurocopter EC 135 and 145, the MD Hughes, etc. Rotor head covers also look good on your model, and we stock them with indentations corresponding to the number of blade grips. The covers are made of CFRP and can...

Référence: 72/18

Rotor head centre piece, rigid

Aluminium centre piece, rigid, for 10 mm main shaft

Référence: 71/18

Spacer for pitch compensator 2.8 x 5 x 2 mm

 Content of the package2 pieces

Référence: 82/23

Washer for Delta rocker 5 mm

Washer for Delta rocker 5 mm Content of the package: 2 pieces

Référence: 54/16

Clamp ring pitch compensator 17 mm

The 17 mm Ø clamp ring is fitted to the rotor head centre piece, the steel pin slides in the guide slot of the pitch compensator. Rotate the clamp for fine adjustment so that your helicopter flies straight when you apply a pitch-axis command.Clamp ring for pitch compensator 17 mm Ø, length of the pin 30 mm.

Référence: 76/19

GRP blade holder, 5 mm ∅ hole

As demands on helicopters continue to rise, so stronger blade holders are required. In this case a 14 mm blade holder is combined with a 5 mm Ø hole for blade retention, i.e. the matching blade holder screws and self-locking nuts are M5 in size.GRP blade holder with short linkage armfor multi-blade rotor heads

Référence: 82/50

Rocker, aluminium

Rocker, aluminium, for rotor head 702/75, alone.

Référence: 80/10

Cadre de commande, boules métal

The control bridge actuates the flybar. The servos pass the control commands to the swashplate. The collective pitch compensator connected to the swashplate transfers the movement to the control bridge via the angled pushrods. The flybar accepts the control commands and passes them on to the blade holders and the rotor disc.Control bridge, GRP, for 4 mm ∅...

Référence: 703/41

La palanca acodada, Alu

Référence: 71/28

Articulation coudée avec goupille

Curved link, with pin

Référence: 76/8

Ballrace spacer, steel

Ballrace spacer, steel Content of the package: 1 piece.
