Set balancines estabilizadores

Reference: 704/39

cabezal de rotor de 4 palas 15 mm

Reference: 78/45

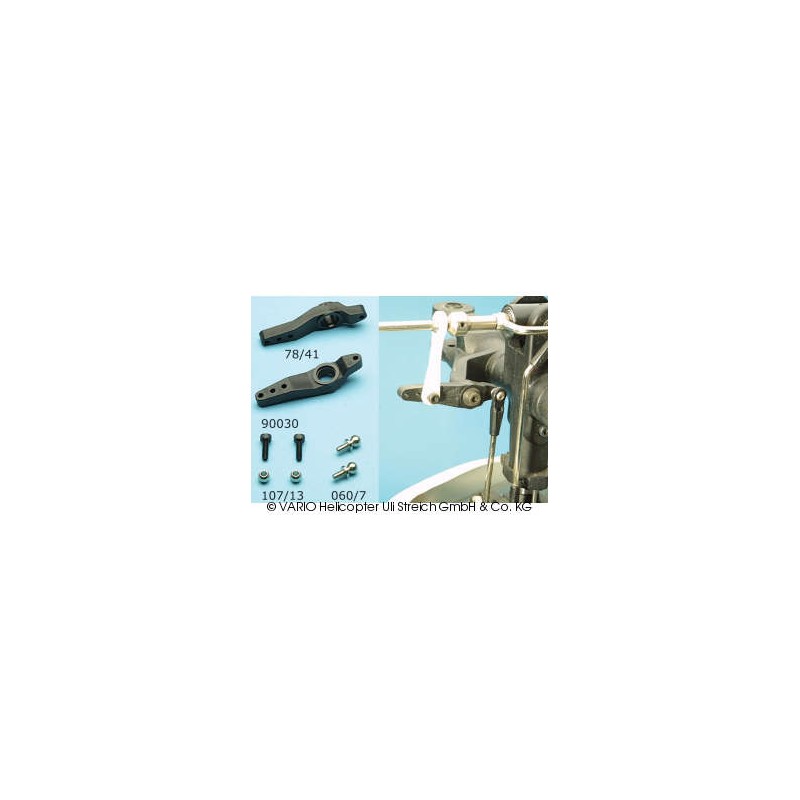

Mixer lever set, aluminium

These mixer levers from aluminium are particularly torsion proof and feature an improved control precision. For individual settings you can change the connection of the linkage (relocate the balls).Flanged bearings 3 x 7 x 3 mm are suitable also, i.e. you use existing ballraces again.Place of installation: all rotor heads which are provided with the...

Reference: 82/23

Washer for Delta rocker 5 mm

Washer for Delta rocker 5 mm Content of the package: 2 pieces

Reference: 87/4

Double ball-link, 90°

A 90° twisted double ball-link connect the mixer lever to the ball collet on the flybar. Content of the package: 2 pieces

Reference: 705/33

5-blade centre piece 12 mm

Component part for a multi-blade rotor head for 12 mm Ø main shaft; see Ord.No. 703/32, 704/32 resp. 705/32.

Reference: 71/4

Pitch mixer centre piece 10 mm

Pitch mixer centre piece, aluminium, 10 mm ∅

Reference: 91/50

Paddles

Paddles1 pairapprox. 29 g eachfor ∅ 4 mm / 5 mm flybar

Reference: 722/71

Collective pitch compensator 12 mm

Pitch compensator, complete, for 12 mm Ø main shaft, centre piece aluminium.For use with the rotor head Ord.No. 722/72.

Reference: 117/20

Thrust bearing set complete

The standard version of our mechanics includes ground thrust bearing shafts with a of 8 mm Ø and a length of 110 mm.Thrust bearings absorb the high centrifugal forces exerted by the main rotor blades. The effect of the axial bearings is retained in full when the blade holders rotate.Thrust bearing set, complete as shown.

Reference: 74/6

O-ring 2 x 6 mm soft

O-ring 2 x 6 mm soft Content of the package: 8 piecesTip: O-rings always slide with a drop of silicone oil onto the shaft.

Reference: 82/19

Aluminium rocker for Delta head

Aluminium rocker for Delta head, 5 mm ∅, alone.

Reference: 54/18

Clamp ring for 12 mm

Same design as clamp ring 54/13, but for 12 mm Ø main rotor shaft.Clamp ring for pitch compensator 12 mm Ø, length of the pin 40 mm.

Reference: 71/28

Curved link, with pin

Curved link, with pin

Reference: 704/31

4-blade centre piece, 10 mm

Item to a multi-blade rotor head for Ø 10 mm shaft; see Ord.No. 703/30, 704/30 and 705/30.

Reference: 72/32

Shaft bearing

Shaft bearing Content of the package: 1 piece

Reference: 71/27

Pivot pin with circlip

Pivot pin with circlipContent of the package 2 pieces
