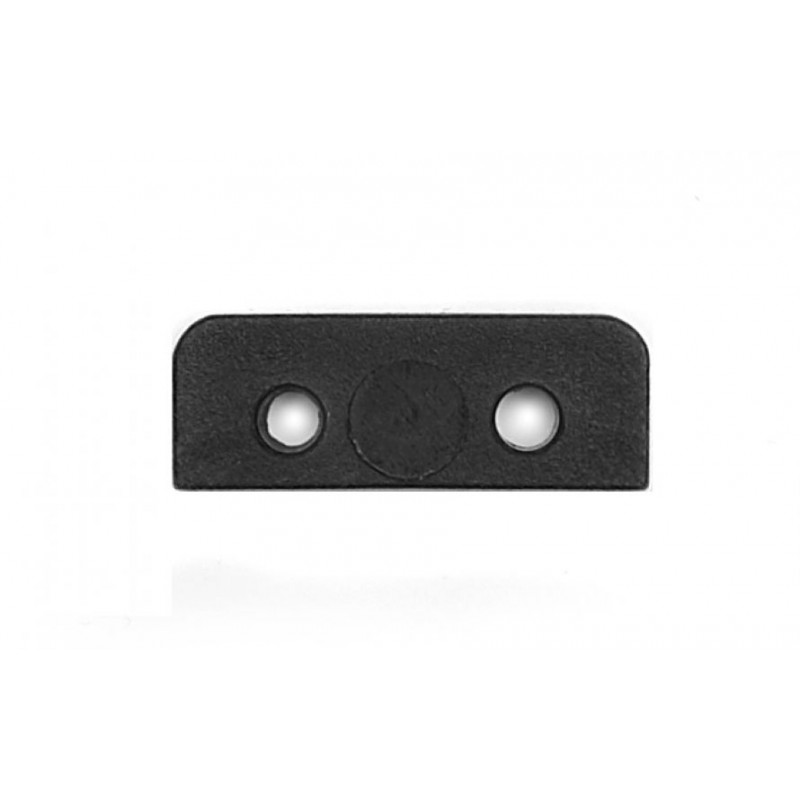

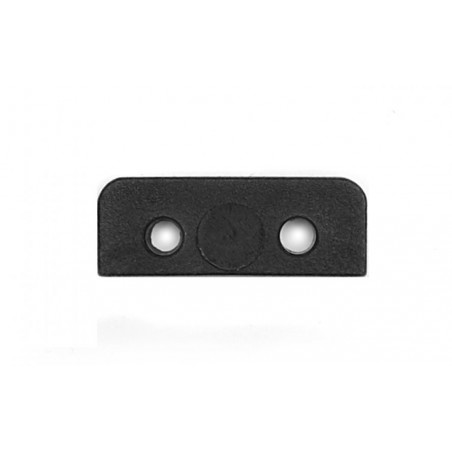

Montante de servo

Reference: 603/19

Adaptor, tail boom rear, GRP

Component part for fuselages, Ord.No. 6030 or 6031.

Reference: 3941/90

Servo mounting set

Rubber servo mounting grommets absorb vibration and also help to protect the servos.Servo mounting set, for 2 JR servos

Reference: 18/1

PVC tube 3.0 x 2.0 x 980 mm, red

PVC tube 3.0 x 2.0 x 980 mm, red

Reference: 74

O-ring 3 x 8 mm hard

O-ring 3 x 8 mm hard Content of the package: 4 pieces Tip: O-rings always slide with a drop of silicone oil onto the shaft.

Reference: 33/5

Rotorblatttasche 5-Blatt max Ø 2500 mm

Reference: 3936/1

Y-lead

If you want to operate two servos in parallel from one receiver channel you requires a Y-lead.

Reference: 3948

Servo numbers

Cable spaghetti? We all know the problem of allocating the servo leads to the receiver outputs. Here's the answer: number them like the pro's do! Simply put the receiver channel number on each lead; they can be removed just as easily. The pack contains three sets of 10, numbered from 0-9, in different colours.Servo numbers, pack of 30

Reference: 1413

Electronic switch harness

Not available

Reference: 13/21

Magnets for speed regulator

These magnets are suitable for use with all commercial speed regulators. For installation in the mechanics it is advisable the magnets be glued in a clamp ring Ord.No. 54/6, or as in the photo on the internal-tooth gear ring. Pack of 3

Reference: 17/4

GRP bracket

 Content of the package1 piece

Reference: 33/1

Rotor blade pouch 2-blade Ø 2500 mm

bag length: 120 cmmax. blade width: 9.5 cm

Reference: 603/40

Al plate, mechanics bearer Schweizer 300 C

Component part for fuselages, Ord.No. 6030 or 6031.

Reference: 21/20

Pushrod 1.2 x 1200 mm, steel

Pushrod 1.2 x 1200 mm, steel

Reference: 33/22

Rotor blade support

If you do not wish to remove the rotor blades temporarily for transport, they can be protected effectively in this strong support, which is mounted above the tail boom.The height of the support, the width of the blade openings and the diameter of the tail boom are the crucial factors when buying a blade support.This support is ideal for pod-and-boom...

Reference: 3944

Servo mount 120°

When using a 4-point-linkage, the linkages from the servos run in a straight line to the swashplate.A 3-point-linkage does not permit this, here the linkages run diagonally.The 120° servo mounting enables inclined installation of the servos, and the results are straight running linkages to the swashplate.All Sky Fox based mechanics as well as on the...

Reference: 97/4

Servo linkage set

When you build your first model helicopter you will find all the linkage components required to connect the servos to the mechanics supplied with the RC set (German radio systems only). When you come to installing servos in other models you can use this servo linkage set which contains all the link balls, screws, nuts and screw-fitting pushrod...
