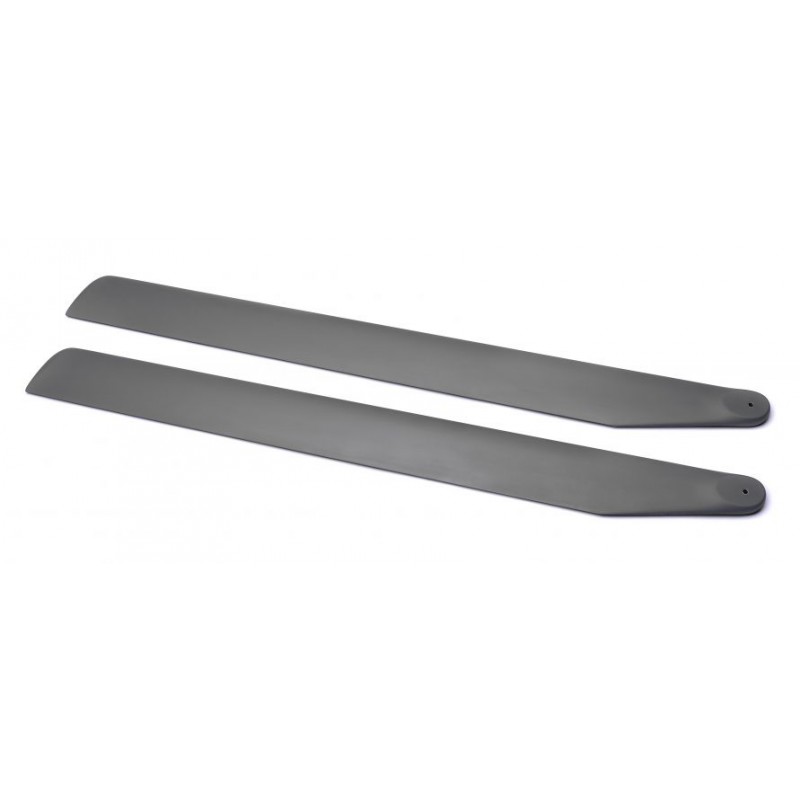

Palas FAI 1500 mm

Reference: 413/4

3-blade-set 2300 mm

Specification 3-blade-set length: 1015 mm rotor disc: 2300 mm blade root: 18 mm 1-hole blade chord: 64 mm profile thickness: 9 mm weight: ca. 480 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex r.h.r.

Reference: 404/19

3-blade-set 1500 mm

Specification3-blade-setlength: 675 mmrotor disc: 1500 mmblade root: 14 mm 2-holeblade chord: 53 mmprofile thickness: 6.8 mmweight: ca. 165 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex r.h.r.

Reference: 424

2-blade-set 1930 mm

Specification 2-blade-set length: 875 mm rotor disc: 1930 mm blade root: 14 mm 1-hole blade chord: 75 mm profile thickness: 11 mm weight: ca. 280 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 404/63

4-Blatt-Satz 2000 mm

Reference: 415/50

2-blade-set 2160 mm

Specification 2-blade-set length: 950 mm rotor disc: 2160 mm blade root: 22 mm 1-hole blade chord: 76 mm profile thickness: 6.5 mm weight: ca. 480 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 414/4

4-blade-set 2100 mm

Specification 4-blade-set length: 915 mm rotor disc: 2100 mm blade root: 18 mm 1-hole blade chord: 65 mm profile thickness: 9 mm weight: ca. 420 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: F404/42

5-blade set 1680 mm

Multi-blade system, rotor disc 1680 mm Ø Specification 14.0 mm twin-blade bolt 765 mm long 53.0 mm blade chord 185 g approx. 6.8 mm profile thickness GRP, reflex 5-blade set

Reference: 404/52

5-blade-set 1880 mm

Specification 5-blade-set length: 865 mm rotor disc: 1880 mm blade root: 14 mm 2-hole blade chord: 53 mm profile thickness: 6.8 mm weight: ca. 200 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 416/5

2-blade-set 2500 mm Alu

Specification 2-blade-set length: 1120 mm rotor disc: 2500 mm blade root: 22 mm 1-hole blade chord: 76 mm profile thickness: 6.5 mm weight: ca. 570 g material: aluminium symmetry: reflex l.h.r.

Reference: 418

2-blade-set 1630 mm

Specification 2-blade-set length: 725 mm rotor disc: 1630 mm blade root: 14 mm 1-hole blade chord: 62 mm profile thickness: 8 mm weight: ca. 220 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 404/40

3-blade-set 1680 mm

Specification3-blade-setlength: 765 mmrotor disc: 1680 mmblade root: 14 mm 2-holeblade chord: 53.0 mmprofile thickness: 6.8 mmweight: ca. 185 gmaterial: CFKShark Skin finish: anthracite mattsymmetry: reflex, l.h.r.

Reference: 416

2-blade-set 2500 mm

Specification 2-blade-set ength:1120 mm rotor disc: 2500 mm blade root: 22 mm 1-hole blade chord: 75 mm profile thickness: 11 mm weight: ca. 500 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 426

2-blade-set 1680 mm

Specification2-blade-setlength: 750 mmrotor disc:1680 mmblade root: 14 mm 1-holeblade chord: 75 mmprofile thickness: 1 mmweight: ca. 250 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex l.h.r.

Reference: 404/60

6-blade-set 2000 mm

Specification 6-blade-set length: 890 mm rotor disc: 2000 mm blade root: 14 mm 1-hole blade chord: 47 mm profile thickness: 7 mm weight: ca. 250 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 404/42

5-blade-set 1680 mm

Specification5-blade-setlength: 765 mmrotor disc: 1680 mmblade root: 14 mm 2-holeblade chord: 53 mmprofile thickness: 6.8 mmweight: ca. 185 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex l.h.r.

Reference: 404/900

5-blade-set 1550 mm

Specification 5-blade-set length: 680 mm rotor disc: 1550 mm blade root: 14 mm 1-hole blade chord: 47 mm profile thickness: 7 mm weight: ca. 150 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.
