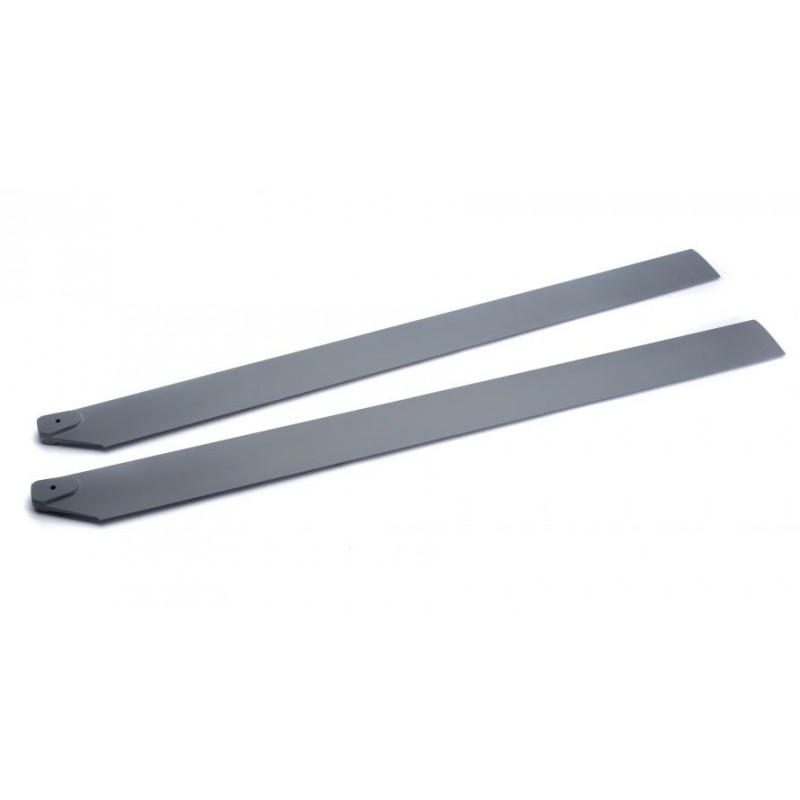

2-blade-set 2160 mm

Référence: 404/63

4-Blatt-Satz 2000 mm

Référence: 404/40

Jeu 3-pales 1680 mm

Specification3-blade-setlength: 765 mmrotor disc: 1680 mmblade root: 14 mm 2-holeblade chord: 53.0 mmprofile thickness: 6.8 mmweight: ca. 185 gmaterial: CFKShark Skin finish: anthracite mattsymmetry: reflex, l.h.r.

Référence: 413/5

2-blade-set 2360 mm Alu

Specification 2-blade-set length: 1050 mm rotor disc: 2360 mm blade root: 22 mm 1-hole blade chord: 76 mm profile thickness: 6.5 mm weight: ca. 530 g material: aluminium symmetry: reflex l.h.r.

Référence: 426

2-blade-set 1680 mm

Specification2-blade-setlength: 750 mmrotor disc:1680 mmblade root: 14 mm 1-holeblade chord: 75 mmprofile thickness: 1 mmweight: ca. 250 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex l.h.r.

Référence: 413/3

Jeu 3-pales 2300 mm

Specification 3-blade-set length: 1015 mm rotor disc: 2300 mm blade root: 18 mm 1-hole blade chord: 65 mm profile thickness: 9 mm weight: ca. 480 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Référence: 404/55

Jeu 4-pales 1900 mm, métal

Multi-blade system, rotor disc 1900 mm Ø Specification 14.0 mm blade root 855 mm long 65.0 mm blade chord 268 g approx. 6.0 mm profile thickness metal, reflex 5.0 mm Ø bore for blade retaining screw

Référence: 404/66

Juego de 4 cuchillas 2000 mm

Référence: 403/9

2-blade-set 1580 mm

Specification 2-blade-set length: 700 mm rotor disc: 1580 mm blade root: 14 mm 1-hole blade chord: 59 mm profile thickness: 8 mm weight: ca. 170 g material: CFRP Shark Skin finish: anthracite matt symmetry: symmetric

Référence: 404/42

Jeu 5-pales 1680 mm

Specification5-blade-setlength: 765 mmrotor disc: 1680 mmblade root: 14 mm 2-holeblade chord: 53 mmprofile thickness: 6.8 mmweight: ca. 185 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex l.h.r.

Référence: 412/4

Jeu 4-pales 2300 mm

Specification 4-blade-set length: 1015 mm rotor disc: 2300 mm blade root: 18 mm 1-hole blade chord: 65 mm profile thickness: 9 mm weight: ca. 480 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Référence: 410

3-D de las palas del rotor 1380 mm

Référence: 416/35

Jeu 3-pales 2500 mm Alu

Specification 3-blade-set length: 1120 mm rotor disc: 2500 mm blade root: 22 mm 1-hole blade chord: 76 mm profile thickness: 6.5 mm weight: ca. 570 g material: aluminium symmetry: reflex l.h.r.

Référence: F428

Reflex blades 2000 mm

Rotor blade, rotor disc 2000 mm Ø Specification 14.0 mm blade root 910 mm long 75.0 mm blade chord 290 g approx. 11.0 mm profile thickness GRP, reflex 1 pair

Référence: 403/3

FAI rotor blades 1500 mm

FAI rotor blade, rotor disc 1500 mm ØSpecification 14.0 mm blade root660 mm long64.5 mm blade chord196 g approx.9.5 mm profile thicknessGRP, symmetrical1 pair

Référence: 404/31

Jeu 4-pales 1600 mm

Specification4-blade-setlength: 725 mmrotor disc: 1600 mmblade root: 14 mm 2-holeblade chord: 53 mmprofile thickness: 6.8 mmweight: ca. 175 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex l.h.r.

Référence: 417/2

Jeu 3-pales 2300 mm

Specification 3-blade-set length: 990 mm rotor disc: 2300 mm blade root: 22 mm 1-hole blade chord: 75 mm profile thickness: 11 mm weight: ca. 420 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex r.h.r.
