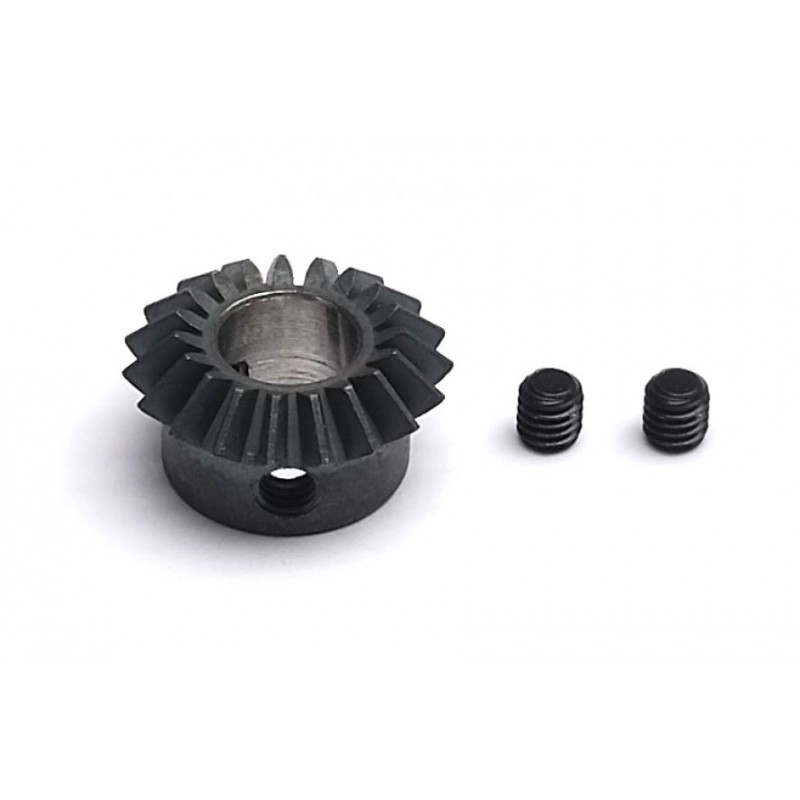

Piñon conico 6 mm, 19 dientes

Reference: 44/54

Gear 54-tooth

Gear 54-tooth GRP The illustration shows a symbol with the number of teeth of the main gear. The number next to the back slash shows the number of teeth for the appropriate clutch and the resulting gear ratio.

Reference: 871/22

Gear 8 mm, 22 teeth

Not available

Reference: 44/70

Gear 65-tooth

Gear 65-tooth Delrin

Reference: 4/30

90° Nippel mit Zollgewinde

Reference: 41/25

Pinion shaft 16.5 mm - for AR

The pinion shaft (shaft and integral spur gear) is one link in the transmission which transfers the engine's power to the main rotor.Pinion shaft with 16.5 mm gear depthsolely for the use with the freewheel bell Ord.No. 36/40or with the hub bell Ord.No. 36/45The length of both pinion shafts is ideal for the optional installation of a driven tail rotor for...

Reference: 41/15

Pinion shaft for 12 mm gear

The pinion shaft (shaft and integral spur gear) is one link in the transmission which transfers the engine's power to the main rotor.Pinion shaft for 12 mm gears The length of both pinion shafts is ideal for the optional installation of a driven tail rotor for auto-rotation landings; fitting does not require the gearbox to be dismanteled.

Reference: 37/10

Gearbox housing incl cover

Even though the main gearbox is placed in the centre of the mechanics it is easily accessible for maintenance. For visual checks of gear meshing clearance, and for greasing the main gearbox it is provided with a gearbox cover.

Reference: 44/45

Gear 58-tooth

Gear 58-tooth Delrin The illustration shows a symbol with the number of teeth of the main gear. The number next to the back slash shows the number of teeth for the appropriate clutch and the resulting gear ratio.

Reference: 809/50

SkyFox left side frame

Not available

Reference: 251/200

Kit for lowering the tail output, X-Treme

When the X-Treme mechanics are mounted in certail fuselage such as Agusta, UH-1D or Dauphin, the tail output needs to be lower. This kit lowers the tail output.

Reference: 870/73

Side plate X-Treme, CFK

Not available

Reference: 809/200

SkyFox side frames with cooling duct

Not available

Reference: 871/102

Main gear, 102 teeth

Not available

Reference: 870/2

RC frame, GFK, for X-Treme

Not available

Reference: 871/2

Servo plate CFK for throttle Servo, X-Treme

Not available

Reference: 1006/9

Main gear box with freewheel

If you require a driven tail rotor for auto-rotation, the main gear hub must be fitted with a freewheel; the freewheel on the main rotor shaft then needs to be replaced by a fixed hub mounted on the main rotor shaft.Main gearbox incl. freewheel for driven tail rotor for auto-rotation landings; kit-form. The pinion shaft 41/25 supplied is only suitable for...
