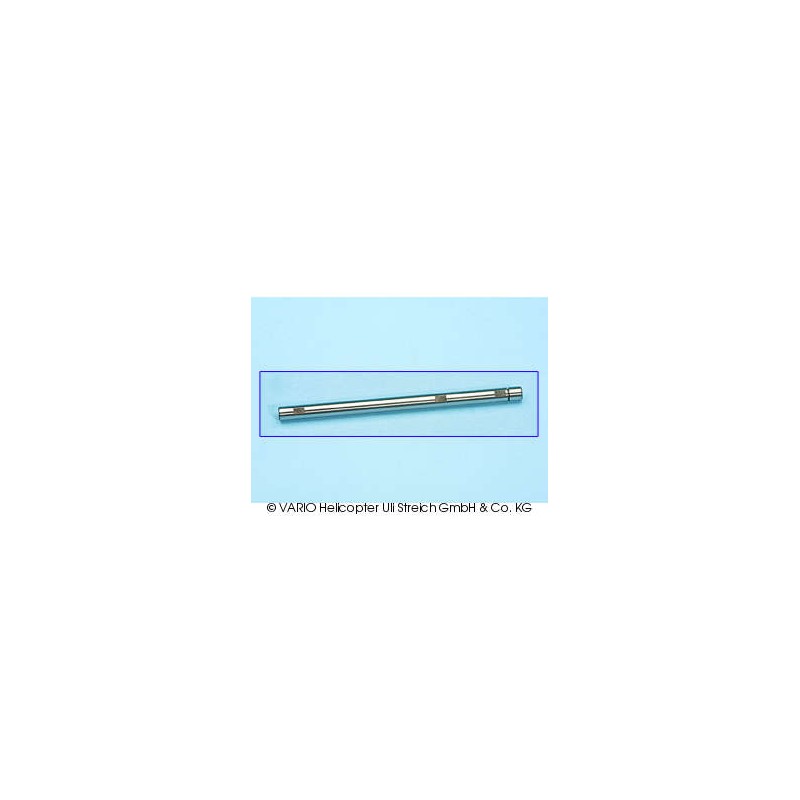

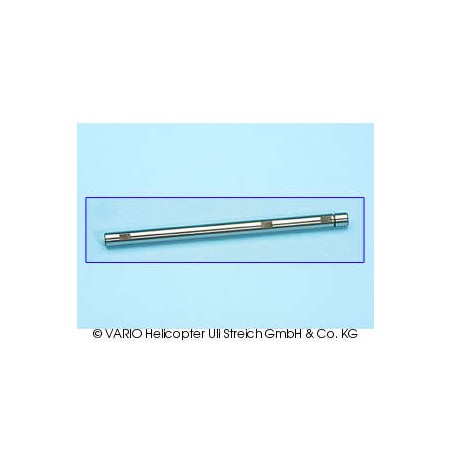

Eje rotor cola 5 x 84.5 mm

Reference: 103/10

Tail blade holder

Tail blade holder for hub with 5 mm.

Reference: 94 C

Circlip for 5 mm ∅ shaftOrd.No. 94 C

 Circlip for 5 mm ∅ shaftpack of 2

Reference: 97/20

Bellcrank set

Bellcrank set, with flanged bearings, bush and shim washer

Reference: 94/18

Tail rotor shaft 6 x 87 mm

 Tail rotor shaft6 x 87 mm

Reference: 92/10

Tail rotor housing 2-part

The advantage of this 2-part tail rotor housing is that the gearbox can be checked just by removing the rear housing shell. When adjusting the meshing clearance of the bevel gears and similar settings please keep closely to the building instructions; for lubrication use titanium grease; Ord.No. 10/36.The tail rotor is a vital and highly stressed component...

Reference: 34/5

Tail rotor pitch gauge

The tail rotor blade pitch gauge is the perfect tool for setting pitch angles really accurately; the pitch range should be plus / minus 12°. The gauge can be used to set up any blade with a chord between 21 and 42 mm. It can also be employed for measuring pushrods and similar items up to a length of 110 mm.

Reference: 98/15

Control sleeve for tail rotor

 Control sleevefor tail rotor shaft 5 mm ∅with nut (left-hand thread!)

Reference: 92/37

Housing cover for tail rotor

Housing cover for aluminium tail rotor with 6 mm shaftaluminium

Reference: 97/15

Bellcrank aluminum left

Not available

Reference: 94/16

Tail rotor shaft 6 x 92 mm

 Tail rotor shaft6 x 92 mm

Reference: 95/7

Bevel gear 5mm, 19 tooth

  Bevel gear 5 mm 19 tooth module 0.8

Reference: 92/82

Heckrotor-Ergänzungsset 4-Blatt

Reference: 92/38

Gehäusedeckel lang

Reference: 99/9

Control ring for tail rotor

 Control ringfor tail rotor shaft 5 mm ∅

Reference: 100/12

Ball links for tail blade grips

 Ball linkspack of 2shortconnection with ball-end bolts

Reference: 103/20

Tail blade holder set, rotor

Changing from a 2-blade tail rotor to a 3-blade version is quick and affordable if you use our complete blade holder set. The set includes all the components you need, including blade holder, thrust bearing, ballraces, ball-end bolt, screws etc., without 3-blade hub.
