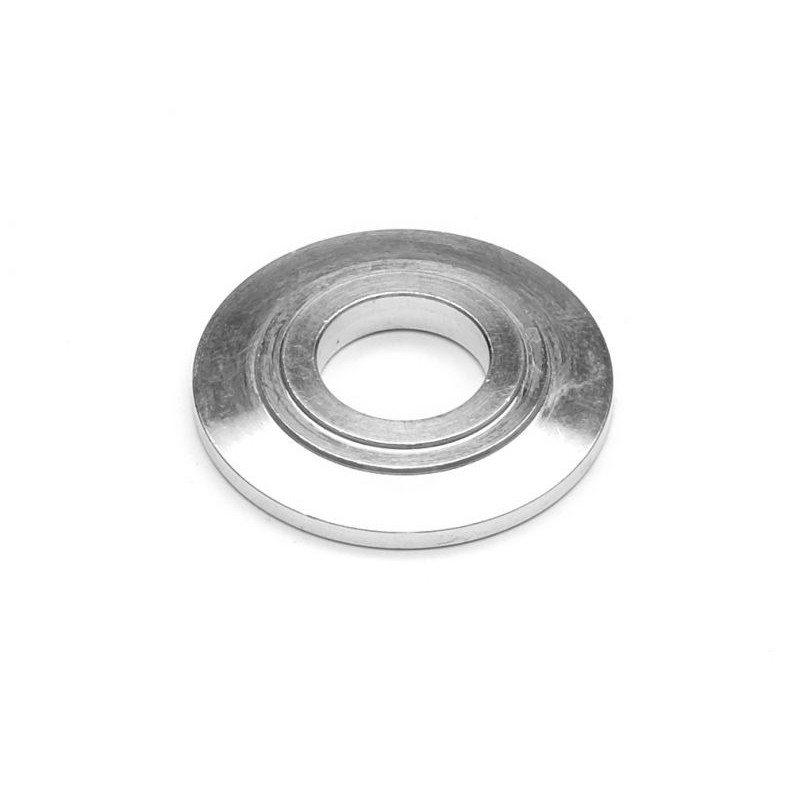

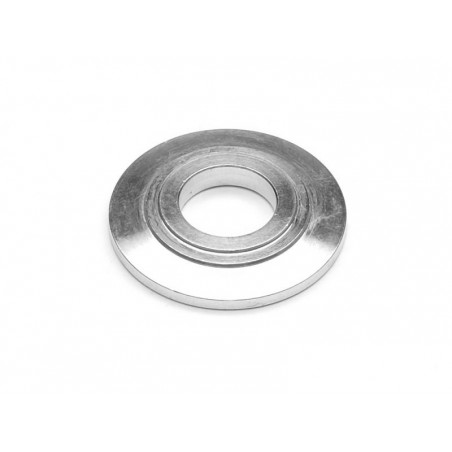

Spacer washer 10 x 24.6 mm

Reference: 72/45

Aluminium centre piece, 12 mm

Aluminium centre piece for 12 mm Ø main shaft

Reference: 86/10

Ball collet 5 mm

Ball collets provide the fixation of double ball-links on the flybar, in order to settle the essential distance to the rocker.Ball collet 5 mm Ø, pack of 2, chrome-plated.

Reference: 76/9

Blade holder arm, aluminium

Blade holder arm, aluminium. Content of the package: 1 piece.

Reference: 72/50

Electro rotor head centre piece

Electro rotor head centre piece, alu.

Reference: 1005/8

Kit de conversión varillaje directo para JetRanger XL eléctrico

Reference: 72/18

Rotor head centre piece, rigid

Aluminium centre piece, rigid, for 10 mm main shaft

Reference: 704/39

cabezal de rotor de 4 palas 15 mm

Reference: 72/42

CFRP plates for aluminium hub

This rotor head hub with its bonded-in carbon fibre plates is a real head-turner. The plates are simply glued into the existing recesses on both sides. We recommend silicone rubber, Ord.No. 10/11, as adhesive.CFRP plates for aluminium hub matching Ord.No. 832/72pack quantity: 2 plates

Reference: 704/31

4-blade centre piece, 10 mm

Item to a multi-blade rotor head for Ø 10 mm shaft; see Ord.No. 703/30, 704/30 and 705/30.

Reference: 82/30

Rocker kit Bell UH / Bell 212 / Bell 47

Not available

Reference: 87/4

Double ball-link, 90°

A 90° twisted double ball-link connect the mixer lever to the ball collet on the flybar. Content of the package: 2 pieces

Reference: 54/16

Clamp ring pitch compensator 17 mm

The 17 mm Ø clamp ring is fitted to the rotor head centre piece, the steel pin slides in the guide slot of the pitch compensator. Rotate the clamp for fine adjustment so that your helicopter flies straight when you apply a pitch-axis command.Clamp ring for pitch compensator 17 mm Ø, length of the pin 30 mm.

Reference: 68/19

Bearing pin

Bearing pin for swashplate driver 68/20. Content of the package: 1 piece.

Reference: 54/13

Clamp ring pitch compensator 10 mm

On longer rotor shafts the clamp ring for the pitch compensator sits underneath of the centre piece directly on the rotor shaft.Clamp ring for pitch compensator 10 mm Ø, length of the pin 30 mm.

Reference: 480/53

Co-rotating dome coverage-set

You can fit to your Chinook heads a plate each that covers the dome and spins with the rotor head rpm. A pretty detail, that also can be found on the original Chinook helicopters. The plates / dome covers are mounted on the clamp rings of the main shafts.Pack of 2 plates incl. mounting material

Reference: 705/31

5-blade centre piece, 10 mm

Item to a multi-blade rotor head for Ø 10 mm shaft; see Ord.No. 703/30, 704/30 and 705/30.
