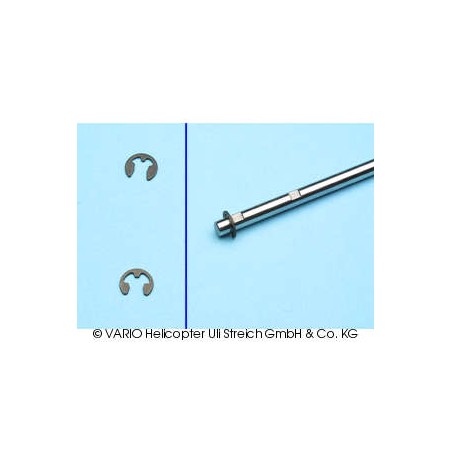

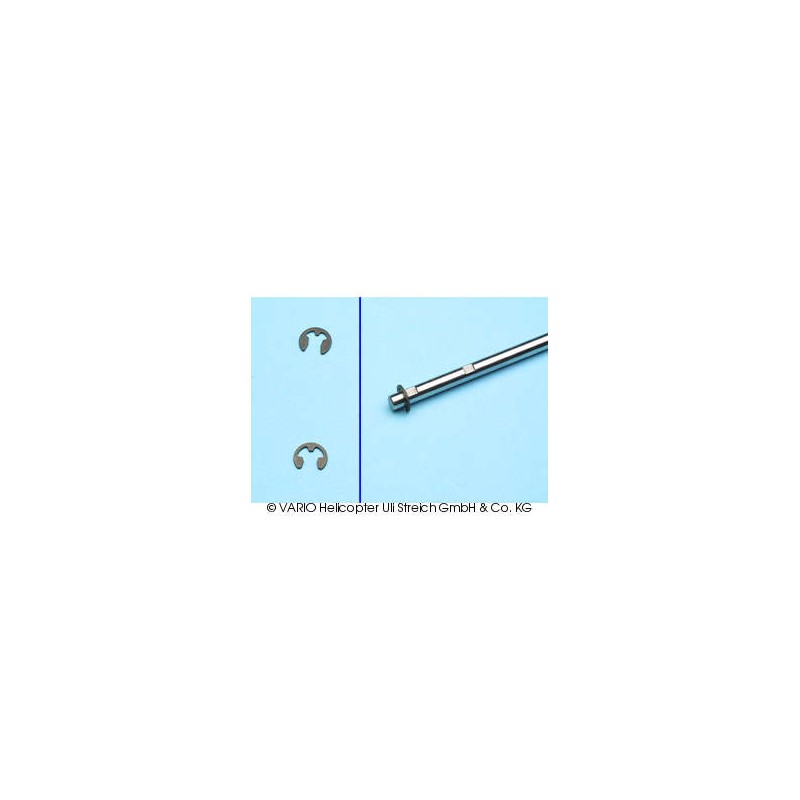

Seeger per albero Ø 5 mm

Riferimento: 103/6

Porta pale coda, tre parti

 Tail blade holder3-partfor 6 mm ∅ hub

Riferimento: 95/20

Ingranaggio-Set per alzare i giri

Bevel gear set, speed up gearing for the tail rotor of the Hughes 500, Ord.No. 9040, complete as illustrated.

Riferimento: 99/6

Distanziale rotore coda

 Control ringfor tail rotor shaft 6 mm ∅

Riferimento: 95/11

Spiral tooth bevel gears 17 t. Ø 5 mm + 16 t. Ø 6 mm

Not available

Riferimento: 92/10

Carter rotore di coda

The advantage of this 2-part tail rotor housing is that the gearbox can be checked just by removing the rear housing shell. When adjusting the meshing clearance of the bevel gears and similar settings please keep closely to the building instructions; for lubrication use titanium grease; Ord.No. 10/36.The tail rotor is a vital and highly stressed component...

Riferimento: 34/5

Calettatore di passo per rotore di coda

The tail rotor blade pitch gauge is the perfect tool for setting pitch angles really accurately; the pitch range should be plus / minus 12°. The gauge can be used to set up any blade with a chord between 21 and 42 mm. It can also be employed for measuring pushrods and similar items up to a length of 110 mm.

Riferimento: 97/16

Bellcrank aluminum right

Not available

Riferimento: 92/87

3-Blatt Heckrotor T-Rex-Lama

Riferimento: 98/16

Boccola scorrevole per coda

 Control sleevefor tail rotor shaft 6 mm ∅with nut (left-hand thread!)

Riferimento: 103/7

Boccola 5 x 6 x 14 mm

Not available

Riferimento: 95/5

Bevel gear 5 mm, 18-tooth

 Bevel gear5 mm18 toothmodule 0.8

Riferimento: 92/11

Viti per carter rotore di coda

 Screw set, 12-part1 x socket-head cap screw M 2 x 8 (90015)5 x socket-head cap screw M 2 x 10 (90020)6 x self-locking nut M 2 (90525)

Riferimento: 92/38

Gehäusedeckel lang

Riferimento: 100/7

Spina 2 mm per trascinatore

Content of the package: 2 pieces.

Riferimento: 95/7

Ingranaggio conico 5 mm, 19 denti

  Bevel gear 5 mm 19 tooth module 0.8

Riferimento: 92/82

Heckrotor-Ergänzungsset 4-Blatt
