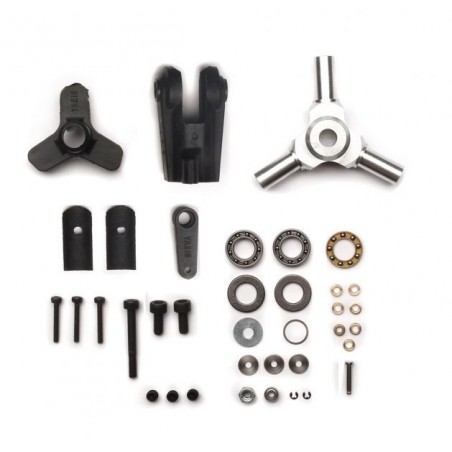

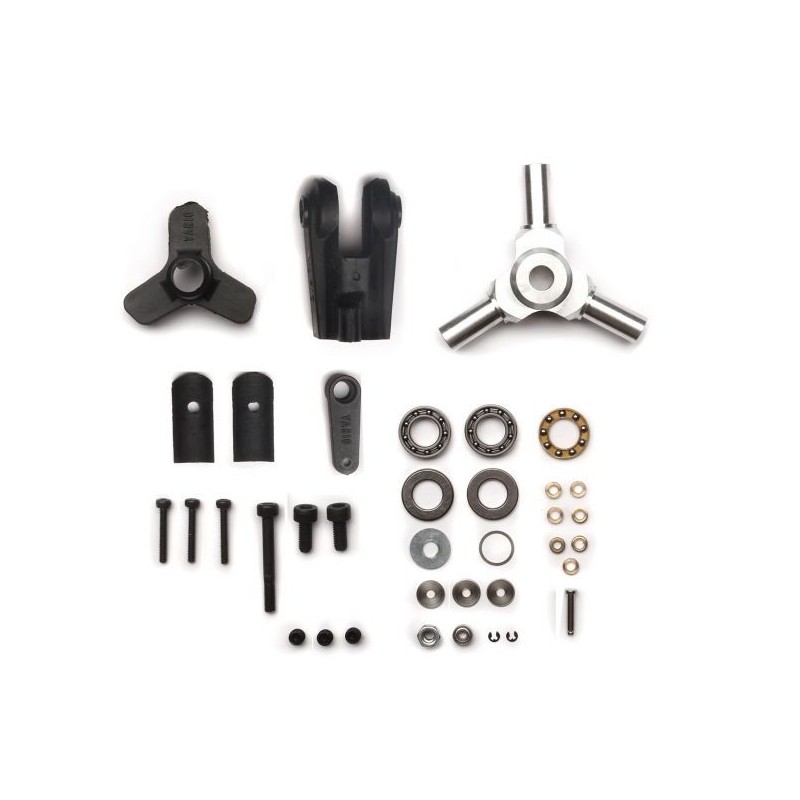

Heckrotor-Ergänzungsset 3-Blatt

Référence: 95/11

Spiral tooth bevel gears 17 t. Ø 5 mm + 16 t. Ø 6 mm

Not available

Référence: 98/16

Douille de commande AC

 Control sleevefor tail rotor shaft 6 mm ∅with nut (left-hand thread!)

Référence: 95/5

Pignon 5 mm, 18 dents

 Bevel gear5 mm18 toothmodule 0.8

Référence: 92/94

Bague de commande pour Fenestron

 Content of the package1 piece

Référence: 92/38

Gehäusedeckel lang

Référence: 100/22

Raccords articulés

 Ball linkspack of 2shortconnection for ballraces

Référence: 99/9

Bague de commande AC

 Control ringfor tail rotor shaft 5 mm ∅

Référence: 97/13

Heckrotorumlenkhebel rechts verstärkt

Référence: 97/10

Palonnier AC

Bellcrank, left-hand

Référence: 94 C

Circlips pour Ø 5 mmOrd.No. 94 C

 Circlip for 5 mm ∅ shaftpack of 2

Référence: 94/19

Heckrotorwelle 6 x 112 mm

Référence: 99/6

Bague de commande AC

 Control ringfor tail rotor shaft 6 mm ∅

Référence: 97/12

Renvoi d'anticouple, renforcé

The forces generated by the tail rotor rise significantly with large, heavy model helicopters; larger tail rotor blades also have the same effect. This reinforced aluminium tail rotor bellcrank is the item of choice wherever high control power is required, as it prevents the lever twisting.Reinforced tail rotor bellcrank, complete with screw fixings

Référence: 97/20

Kit palonnier AC

Bellcrank set, with flanged bearings, bush and shim washer

Référence: 92/10

Boîtier AC

The advantage of this 2-part tail rotor housing is that the gearbox can be checked just by removing the rear housing shell. When adjusting the meshing clearance of the bevel gears and similar settings please keep closely to the building instructions; for lubrication use titanium grease; Ord.No. 10/36.The tail rotor is a vital and highly stressed component...

Référence: 92/11

Kit visserie, 12 pièces

 Screw set, 12-part1 x socket-head cap screw M 2 x 8 (90015)5 x socket-head cap screw M 2 x 10 (90020)6 x self-locking nut M 2 (90525)
