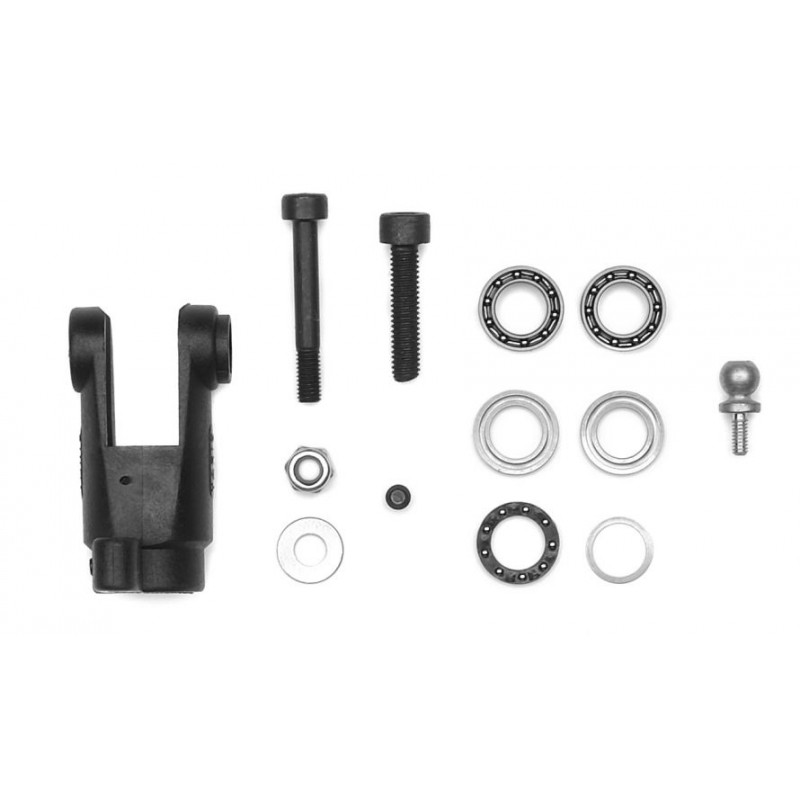

Tail blade holder set, rotor

Référence: 92/36

Couvercle pour roulement, AC

Aluminium cover for tail rotor housing for aluminium tail rotor with 6 mm shaft.

Référence: 97/20

Kit palonnier AC

Bellcrank set, with flanged bearings, bush and shim washer

Référence: 92/38

Gehäusedeckel lang

Référence: 92/39

Gehäuseverlängerung

Référence: 34/5

Incidencemètre pour anticouple

The tail rotor blade pitch gauge is the perfect tool for setting pitch angles really accurately; the pitch range should be plus / minus 12°. The gauge can be used to set up any blade with a chord between 21 and 42 mm. It can also be employed for measuring pushrods and similar items up to a length of 110 mm.

Référence: 95/7

Pignon 5 mm, 19 dents

  Bevel gear 5 mm 19 tooth module 0.8

Référence: 97/13

Heckrotorumlenkhebel rechts verstärkt

Référence: 95/5

Pignon 5 mm, 18 dents

 Bevel gear5 mm18 toothmodule 0.8

Référence: 97/12

Renvoi d'anticouple, renforcé

The forces generated by the tail rotor rise significantly with large, heavy model helicopters; larger tail rotor blades also have the same effect. This reinforced aluminium tail rotor bellcrank is the item of choice wherever high control power is required, as it prevents the lever twisting.Reinforced tail rotor bellcrank, complete with screw fixings

Référence: 95/20

Pignon-Kit augmentation régime rotor anticouple

Bevel gear set, speed up gearing for the tail rotor of the Hughes 500, Ord.No. 9040, complete as illustrated.

Référence: 99/9

Bague de commande AC

 Control ringfor tail rotor shaft 5 mm ∅

Référence: 98/15

Douille de commande AC

 Control sleevefor tail rotor shaft 5 mm ∅with nut (left-hand thread!)

Référence: 054

Vis porte-pales anticouple M 3 x 20 mm G12

Bolt using self-locking nuts don't need additional screw-retaining fluid. Of course this applies to the blade holder bolts on the main rotor head and on the tail rotor (as shown here). Blade holder bolts are counted among the special bolts with high tensile stength, where the shaft and thread length are matched to the application. Pack of 2 with...

Référence: 92/81

Heckrotor-Ergänzungsset 3-Blatt

Référence: 100/22

Raccords articulés

 Ball linkspack of 2shortconnection for ballraces

Référence: 92/10

Boîtier AC

The advantage of this 2-part tail rotor housing is that the gearbox can be checked just by removing the rear housing shell. When adjusting the meshing clearance of the bevel gears and similar settings please keep closely to the building instructions; for lubrication use titanium grease; Ord.No. 10/36.The tail rotor is a vital and highly stressed component...
