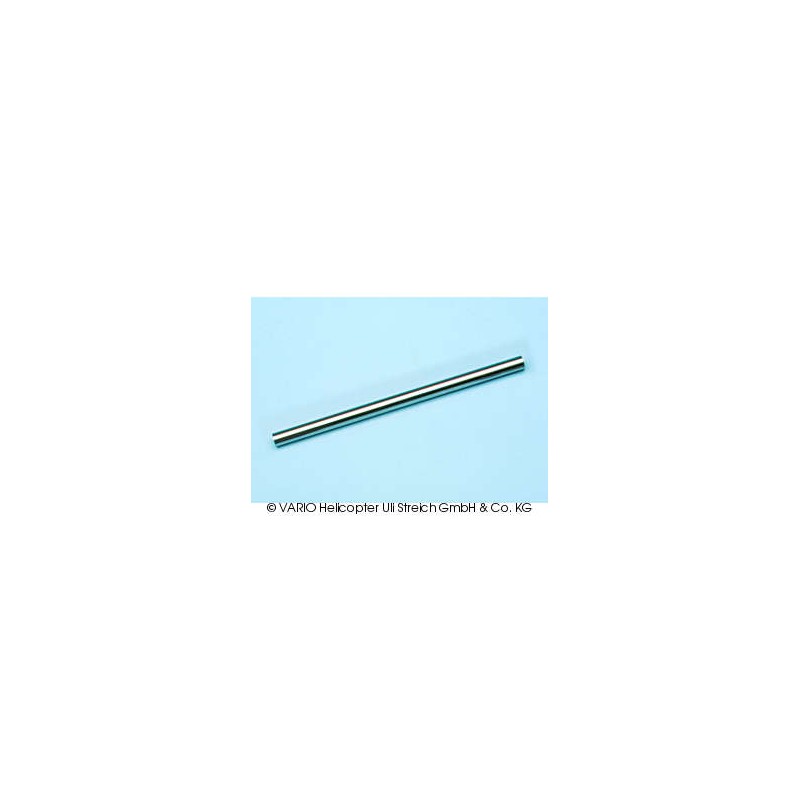

Blade pivot shaft 10 x 187 mm

Référence: 91/50

Palettes

Paddles1 pairapprox. 29 g eachfor ∅ 4 mm / 5 mm flybar

Référence: 703/45

Rotor head linkage for Alouette III

This rotor head linkage is essential for the correct operation of the rotor head of the Alouette III due to its heavy take-off weight.

Référence: 703/31

3-blade centre piece, 10 mm

Item to a multi-blade rotor head for Ø 10 mm shaft; see Ord.No. 703/30, 704/30 and 705/30.

Référence: 78/40

Kit mélangeurs

Mixer levers are an essential part of every flybar-controlled rotor head. From the swashplate a pushrod runs to the ballraced mixer arm which is screwed to the blade holder arm. The mixer levers transmit the control movement to the flybar via the double ball-link.Additionial accessories for the use of mixer levers are either two flanged ballraces or two...

Référence: 705/33

5-blade centre piece 12 mm

Component part for a multi-blade rotor head for 12 mm Ø main shaft; see Ord.No. 703/32, 704/32 resp. 705/32.

Référence: 703/340

Washer for fastening multi-blade head

Not available

Référence: 74/21

O-ring 3.5 x 12 mm hard

O-ring 3.5 x 12 mm hard Content of the package: 8 pieces Tip: O-rings always slide with a drop of silicone oil onto the shaft.

Référence: 86

Ball collet 4 mm

Ball collets provide the fixation of double ball-links on the flybar, in order to settle the essential distance to the rocker. Ball collet 4 mm Ø, pack of 2, chrome-plated.

Référence: 71/55

Collective pitch compensator 12 mm

Pitch compensator, complete, for 12 mm Ø main shaft, centre piece aluminium

Référence: 702/15

15mm 2 blade centre piece

Aluminium centre piece for 15 mm Ø main shaft

Référence: 832/70

Mixer arms, aluminium

Mixer arms, aluminium Content of the package: 2 pieces

Référence: 72/10

Pièce centrale tête rotor

Rotor head centre piece for 2-bladed rotor head.

Référence: 1005/8

Kit de conversión varillaje directo para JetRanger XL eléctrico

Référence: 73/15

Axe porte-pales 8 x 115,9 mm

 Thrust bearing shaft8 Ø x 115.9 mm

Référence: 480/54

Anillo de sujeción plateado con 3 orificios

Référence: 74/15

Joint torique 2,5 x 12 mm, pour tête de rotor en élastomère

Pack of 4Tip: O-rings always slide with a drop of silicone oil onto the shaft.
