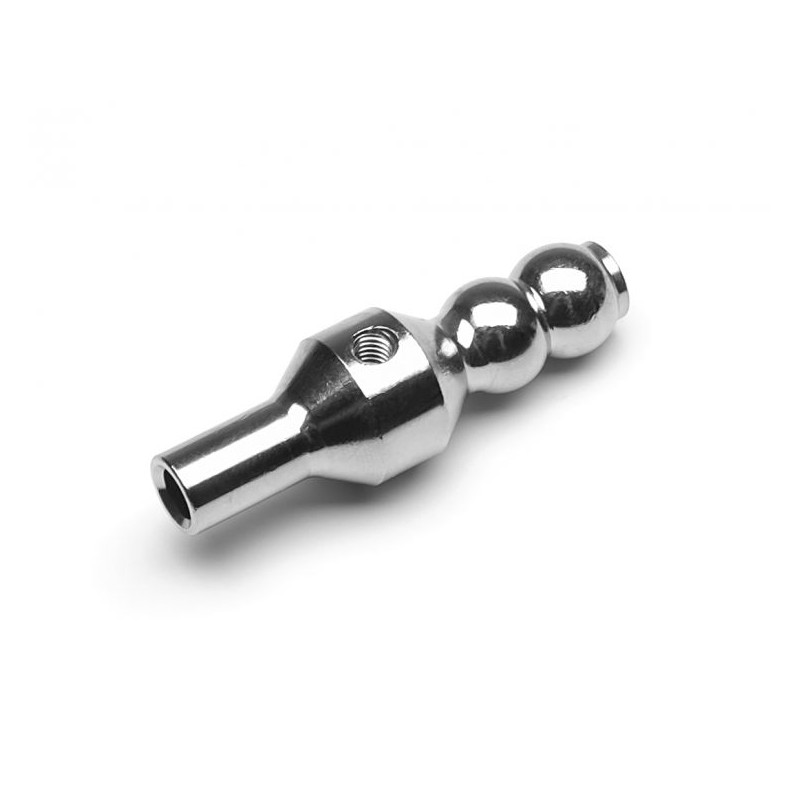

Ball-collet with double ball

Reference: 82/51

Bellcrank

Not available

Reference: 71/20

Collective pitch compensator 10 mm ∅

Pitch compensator, complete, for 10 mm ∅ main shaft, centre piece GRP

Reference: 707

Rotor cap for Multi blade head

The diameter is 83 mm and the construction height from the screw-on surface to the highest point is 13 mm.It is fastened using an M4 x 14 hexagon socket screw (included).

Reference: 87/20

Actuating lever

The connection between mixer lever and variable rocker is carried out by an actuating lever, triple ballraced. Content of the package: 2 pieces

Reference: 76/15

GRP blade holder reinforced

Blade holder, GRP, reinforced

Reference: 71/26

Curved link

Curved link Content of the package: 2 pieces

Reference: 832/54

Clamp ring

Clamp ring for rotor head 722/72.

Reference: 79/15

Flybar stainless steel 4 x 600 mm

The length of the flybar itself also plays an important role in the model's flight characteristics: the longer the flybar, the smoother the hover. A longer flybar increases the control deflections. 450 mm length is considered normal, while 510 mm provides more docile handling.

Reference: 78/40

Mixer lever set

Mixer levers are an essential part of every flybar-controlled rotor head. From the swashplate a pushrod runs to the ballraced mixer arm which is screwed to the blade holder arm. The mixer levers transmit the control movement to the flybar via the double ball-link.Additionial accessories for the use of mixer levers are either two flanged ballraces or two...

Reference: 72/1

CFRP rotor brake

When you have landed and stopped the engine, the rotor head continues spinning for quite some time until it stops by itself. A rotor brake shortens the time you have to wait. Using light pressure with the flat of your hand on the domed face of the rotor brake you can stop the rotor in a few moments. Pease note: stay in safe distance away from the turning...

Reference: 76/10

Blade holder, aluminium

Blade holder, aluminium, alone.

Reference: 480/54

Anillo de sujeción plateado con 3 orificios

Reference: 71/18

Spacer for pitch compensator 2.8 x 5 x 2 mm

 Content of the package2 pieces

Reference: 76/16

GRP blade holder, 5 mm ∅ hole

As demands on helicopters continue to rise, so stronger blade holders are required. In this case a 14 mm blade holder is combined with a 5 mm Ø hole for blade retention, i.e. the matching blade holder screws and self-locking nuts are M5 in size.GRP blade holder with long linkage armfor two-blade rotor heads

Reference: 71/28

Curved link, with pin

Curved link, with pin

Reference: 707/5

Rotor head cover for 5-blade head

The multi-blade rotor heads of full-size helicopters are generally fitted with protective covers; this applies to the Ecureuil, the Dauphin, the Eurocopter EC 135 and 145, the MD Hughes, etc. Rotor head covers also look good on your model, and we stock them with indentations corresponding to the number of blade grips. The covers are made of CFRP and can...
