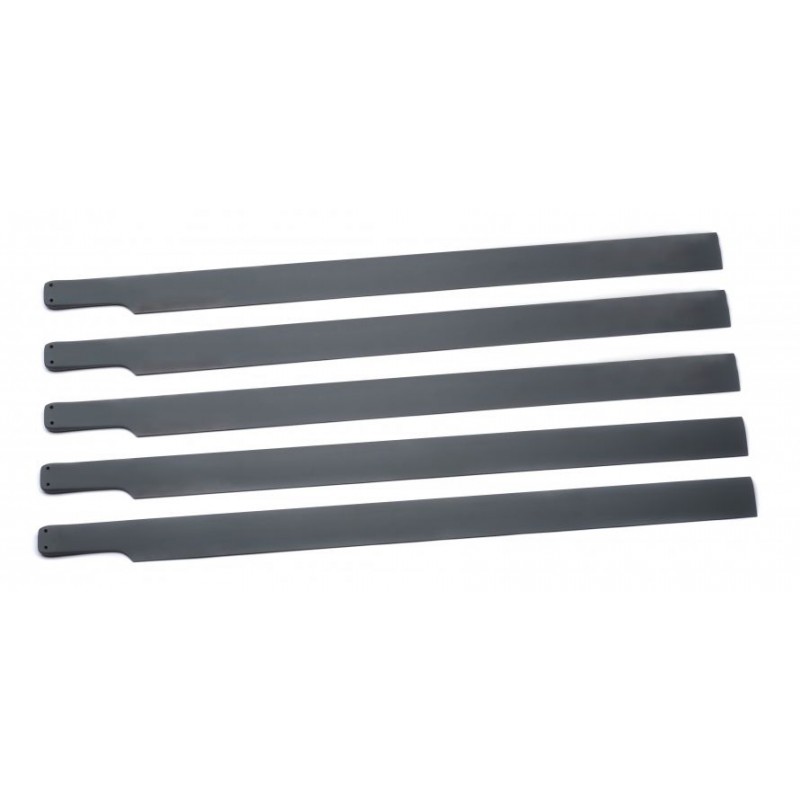

5-blade-set 1880 mm

Reference: 404/51

4-blade-set 1880 mm

Specification 4-blade-set length: 865 mm rotor disc: 1880 mm blade root: 14 mm 2-hole blade chord: 53 mm profile thickness: 6.8 mm weight: ca. 200 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 404/39

4-blade-set 1680 mm

Specification 4-blade-set length: 765 mm rotor disc: 1680 mm blade root: 14 mm 2-hole blade chord: 53 mm profile thickness: 6.8 mm weight: ca. 185 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex r.h.r.

Reference: 404/19

3-blade-set 1500 mm

Specification3-blade-setlength: 675 mmrotor disc: 1500 mmblade root: 14 mm 2-holeblade chord: 53 mmprofile thickness: 6.8 mmweight: ca. 165 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex r.h.r.

Reference: 413/5

2-blade-set 2360 mm Alu

Specification 2-blade-set length: 1050 mm rotor disc: 2360 mm blade root: 22 mm 1-hole blade chord: 76 mm profile thickness: 6.5 mm weight: ca. 530 g material: aluminium symmetry: reflex l.h.r.

Reference: 404/41

4-blade-set 1680 mm

Specification4-blade-setlength: 765 mmrotor disc: 1680 mmblade root: 14 mm 2-holeblade chord: 53 mmprofile thickness: 6.8 mmweight: ca. 185 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex l.h.r.

Reference: 404/28

3-blade-set 1600 mm

Specification 3-blade-set length: 725 mm rotor disc: 1600 mm blade root: 14 mm 2-hole blade chord: 53 mm profile thickness: 6.8 mm weight: ca. 175 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex r.h.r.

Reference: 413/1

2-blade-set 2360 mm

Specification 2-blade-set length: 1050 mm rotor disc: 2360 mm blade root: 22 mm 1-hole blade chord: 75 mm profile thickness: 11 mm weight: ca. 450 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex r.h.r.

Reference: 415/50

2-blade-set 2160 mm

Specification 2-blade-set length: 950 mm rotor disc: 2160 mm blade root: 22 mm 1-hole blade chord: 76 mm profile thickness: 6.5 mm weight: ca. 480 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 404/18

4-blade-set 1600 mm

Specification4-blade-setlength: 725 mmrotor disc: 1600 mmblade root: 14 mm 2-holeblade chord: 53 mmprofile thickness: 6.8 mmweight: ca. 175 gmaterial: CFRPShark Skin finish: anthracite mattsymmetry: reflex r.h.r.

Reference: 404/480

2x3-blade-set 1550 mm

Specification 2x3-blade-set length: 675 mm rotor disc: 1550 mm blade root: 14 mm 2-hole blade chord: 53 mm profile thickness: 6.8 mm weight: ca. 165 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r. + r.h.r.

Reference: 410

3-D de las palas del rotor 1380 mm

Reference: 416/5

2-blade-set 2500 mm Alu

Specification 2-blade-set length: 1120 mm rotor disc: 2500 mm blade root: 22 mm 1-hole blade chord: 76 mm profile thickness: 6.5 mm weight: ca. 570 g material: aluminium symmetry: reflex l.h.r.

Reference: 419

2-blade-set 1810 mm

Specification 2-blade-set length: 815 mm rotor disc: 1810 mm blade root: 14 mm 1-hole blade chord: 72 mm profile thickness: 9 mm weight: ca. 260 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex l.h.r.

Reference: 416/35

3-blade-set 2500 mm Alu

Specification 3-blade-set length: 1120 mm rotor disc: 2500 mm blade root: 22 mm 1-hole blade chord: 76 mm profile thickness: 6.5 mm weight: ca. 570 g material: aluminium symmetry: reflex l.h.r.

Reference: 404/38

3-blade-set 1680 mm

Specification3-blade-setlength: 765 mmrotor disc: 1680 mmblade root: 14 mm 2-holeblade chord: 53.0 mmprofile thickness: 6.8 mmweight: ca. 185 gmaterial: CFKShark Skin finish: anthracite mattsymmetry: reflex, r.h.r.

Reference: 417/3

3-blade-set 2500 mm

Specification 3-blade-set length: 1090 mm rotor disc: 2500 mm blade root: 22 mm 1-hole blade chord: 75 mm profile thickness: 1 mm weight: ca. 500 g material: CFRP Shark Skin finish: anthracite matt symmetry: reflex r.h.r.
