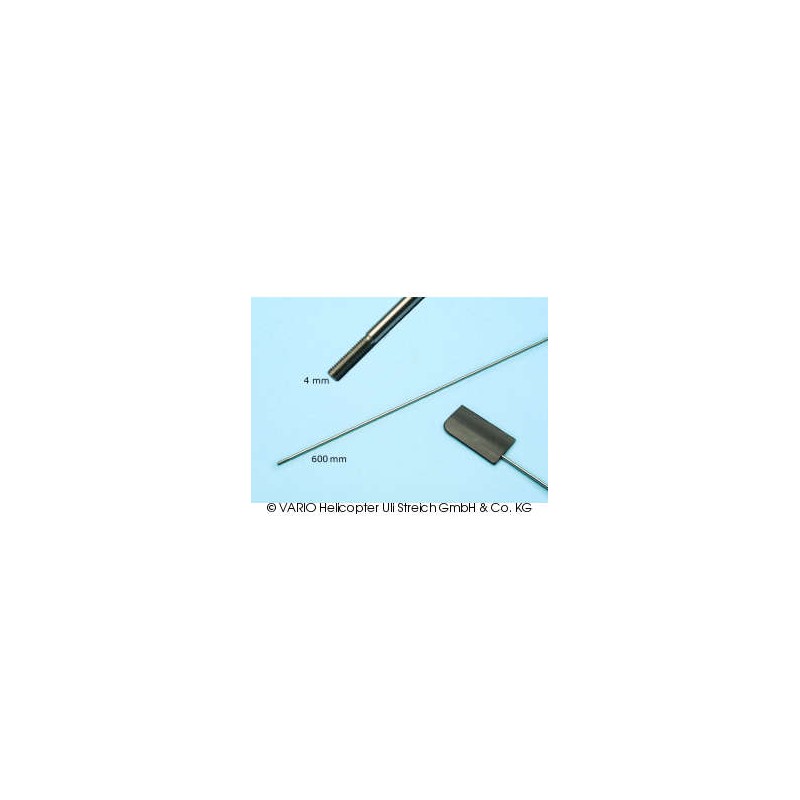

Flybar stainless steel 4 x 600 mm

Référence: 80/10

Cadre de commande, boules métal

The control bridge actuates the flybar. The servos pass the control commands to the swashplate. The collective pitch compensator connected to the swashplate transfers the movement to the control bridge via the angled pushrods. The flybar accepts the control commands and passes them on to the blade holders and the rotor disc.Control bridge, GRP, for 4 mm ∅...

Référence: 80/30

Bras de commande en métal, 5 mm

Control bridge 2-part metal, for 5 mm ∅ flybar.

Référence: 74/4

O-ring 2 x 4 mm soft

O-ring 2 x 4 mm soft Content of the package: 8 pieces Tip: O-rings always slide with a drop of silicone oil onto the shaft.

Référence: 73/10

Axe porte-pales 8 x 110 mm

 Thrust bearing shaft8 Ø x 110 mm

Référence: 86

Ball collet 4 mm

Ball collets provide the fixation of double ball-links on the flybar, in order to settle the essential distance to the rocker. Ball collet 4 mm Ø, pack of 2, chrome-plated.

Référence: 91/50

Palettes

Paddles1 pairapprox. 29 g eachfor ∅ 4 mm / 5 mm flybar

Référence: 480/54

Anillo de sujeción plateado con 3 orificios

Référence: 74/14

O-ring 3 x 16 mm soft

O-ring 3 x 16 mm soft Content of the package: 8 pieces Tip: O-rings always slide with a drop of silicone oil onto the shaft.

Référence: 74/11

O-ring 1,5 x 11 mm soft

O-ring 1,5 x 11 mm soft Content of the package: 8 pieces Tip: O-rings always slide with a drop of silicone oil onto the shaft.

Référence: 832/54

Clamp ring

Clamp ring for rotor head 722/72.

Référence: 76/18

Blade holder twin blade bolt

Component part for a multi-blade rotor head for 10 mm or 12 mm Ø main shaft.

Référence: 71 A

Pièce centrale pour compensateur de pasOrd.No. 71 A

Centre piece for pitchcompensator, GFK, alone.

Référence: 702/97

Linkage ball

Not available

Référence: 71/18

Spacer for pitch compensator 2.8 x 5 x 2 mm

 Content of the package2 pieces

Référence: 832/66

Ball-collet with double ball

The use of ball-collets makes it possible to attach double ball-links to the flybar; this automatically sets the correct rocker spacing. The double-ball on these ball-collets also provides an adjustment facility for the VR-22 rotor head, as the double ball-link can always be set vertical by connecting it to the inside or outside ball - provided that the...

Référence: 704/39

cabezal de rotor de 4 palas 15 mm
