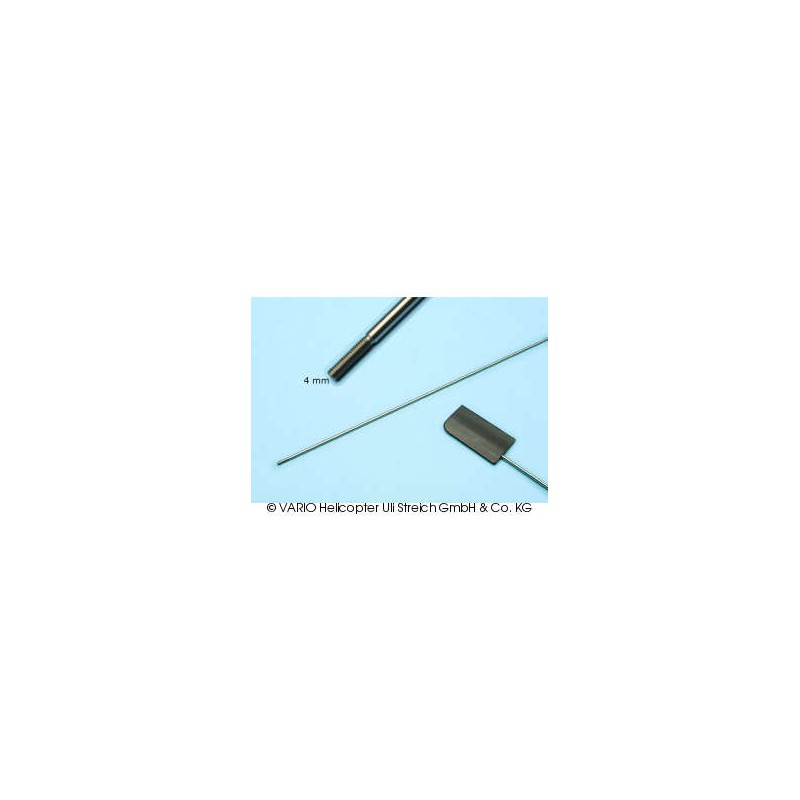

Flybar stainless steel 4 x 450 mm

Reference: 71/30

Collective pitch compensator 10 mm

Pitch compensator, complete, for 10 mm ∅ main shaft, centre piece aluminium

Reference: 72/50

Electro rotor head centre piece

Electro rotor head centre piece, alu.

Reference: 703/45

Rotor head linkage for Alouette III

This rotor head linkage is essential for the correct operation of the rotor head of the Alouette III due to its heavy take-off weight.

Reference: 54/13

Clamp ring pitch compensator 10 mm

On longer rotor shafts the clamp ring for the pitch compensator sits underneath of the centre piece directly on the rotor shaft.Clamp ring for pitch compensator 10 mm Ø, length of the pin 30 mm.

Reference: 71/20

Collective pitch compensator 10 mm ∅

Pitch compensator, complete, for 10 mm ∅ main shaft, centre piece GRP

Reference: 72/18

Rotor head centre piece, rigid

Aluminium centre piece, rigid, for 10 mm main shaft

Reference: 480/54

Anillo de sujeción plateado con 3 orificios

Reference: 68/19

Bearing pin

Bearing pin for swashplate driver 68/20. Content of the package: 1 piece.

Reference: 832/74

O-ring 9 x 4.5 mm

O-ring 9 x 4.5 mm Content of the package: 4 pieces Tip: O-rings always slide with a drop of silicone oil onto the shaft.

Reference: 705/31

5-blade centre piece, 10 mm

Item to a multi-blade rotor head for Ø 10 mm shaft; see Ord.No. 703/30, 704/30 and 705/30.

Reference: 78/45

Mixer lever set, aluminium

These mixer levers from aluminium are particularly torsion proof and feature an improved control precision. For individual settings you can change the connection of the linkage (relocate the balls).Flanged bearings 3 x 7 x 3 mm are suitable also, i.e. you use existing ballraces again.Place of installation: all rotor heads which are provided with the...

Reference: 72/10

Rotor head centre piece

Rotor head centre piece for 2-bladed rotor head.

Reference: 76/9

Blade holder arm, aluminium

Blade holder arm, aluminium. Content of the package: 1 piece.

Reference: 703/41

La palanca acodada, Alu

Reference: 82/31

Rocker, GRP

Rocker, GRP, for rotor head 702/70, alone

Reference: 117/20

Thrust bearing set complete

The standard version of our mechanics includes ground thrust bearing shafts with a of 8 mm Ø and a length of 110 mm.Thrust bearings absorb the high centrifugal forces exerted by the main rotor blades. The effect of the axial bearings is retained in full when the blade holders rotate.Thrust bearing set, complete as shown.
