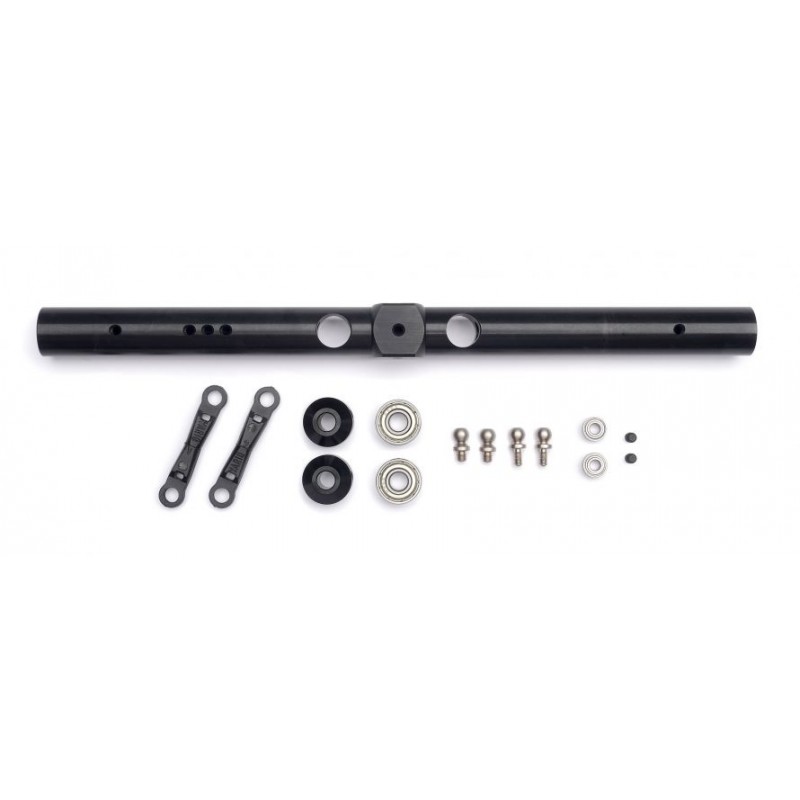

Conversion set for Delta head

Référence: 703/41

La palanca acodada, Alu

Référence: 79/13

Flybar stainless steel 4 x 560 mm

The length of the flybar itself also plays an important role in the model's flight characteristics: the longer the flybar, the smoother the hover. A longer flybar increases the control deflections. 450 mm length is considered normal, while 510 mm provides more docile handling.

Référence: 73/15

Axe porte-pales 8 x 115,9 mm

 Thrust bearing shaft8 Ø x 115.9 mm

Référence: 702/95

Spring for rotor head Bell 47

 Content of the package2 pieces

Référence: 707

Rotor cap for Multi blade head

The diameter is 83 mm and the construction height from the screw-on surface to the highest point is 13 mm.It is fastened using an M4 x 14 hexagon socket screw (included).

Référence: 91/55

Lead for paddles

 Lead for paddlespack of 2approx. 8.5 g each

Référence: 79/10

Barre de Bell inox 4 x 510 mm

The length of the flybar itself also plays an important role in the model's flight characteristics: the longer the flybar, the smoother the hover. A longer flybar increases the control deflections. 450 mm length is considered normal, while 510 mm provides more docile handling.

Référence: 703/31

3-blade centre piece, 10 mm

Item to a multi-blade rotor head for Ø 10 mm shaft; see Ord.No. 703/30, 704/30 and 705/30.

Référence: 704/39

cabezal de rotor de 4 palas 15 mm

Référence: 74/13

O-Ring 2 x 13 mm, soft

O-Ring2 x 13 mmSoftPackage: 8 pieces

Référence: 68/19

Bearing pin

Bearing pin for swashplate driver 68/20. Content of the package: 1 piece.

Référence: 71/14

Bras de compensateur

Pack of 2

Référence: 832/55

Clamp ring, mixing base

Clamp ring for pitch compensator

Référence: 78/41

Mixer lever cranked

Mixer lever, content of the package 1 piece.Additionial accessories for the use of mixer levers are either two flanged ballraces or two flanged bushes from Delrin as a low cost alternative. The screwing on the blade holder arm complies with the kind of hole, i.e. it depends on the through hole or on the blind hole. Please note for choosing the screws:...

Référence: 117/20

Thrust bearing set complete

The standard version of our mechanics includes ground thrust bearing shafts with a of 8 mm Ø and a length of 110 mm.Thrust bearings absorb the high centrifugal forces exerted by the main rotor blades. The effect of the axial bearings is retained in full when the blade holders rotate.Thrust bearing set, complete as shown.

Référence: 722/71

Collective pitch compensator 12 mm

Pitch compensator, complete, for 12 mm Ø main shaft, centre piece aluminium.For use with the rotor head Ord.No. 722/72.
